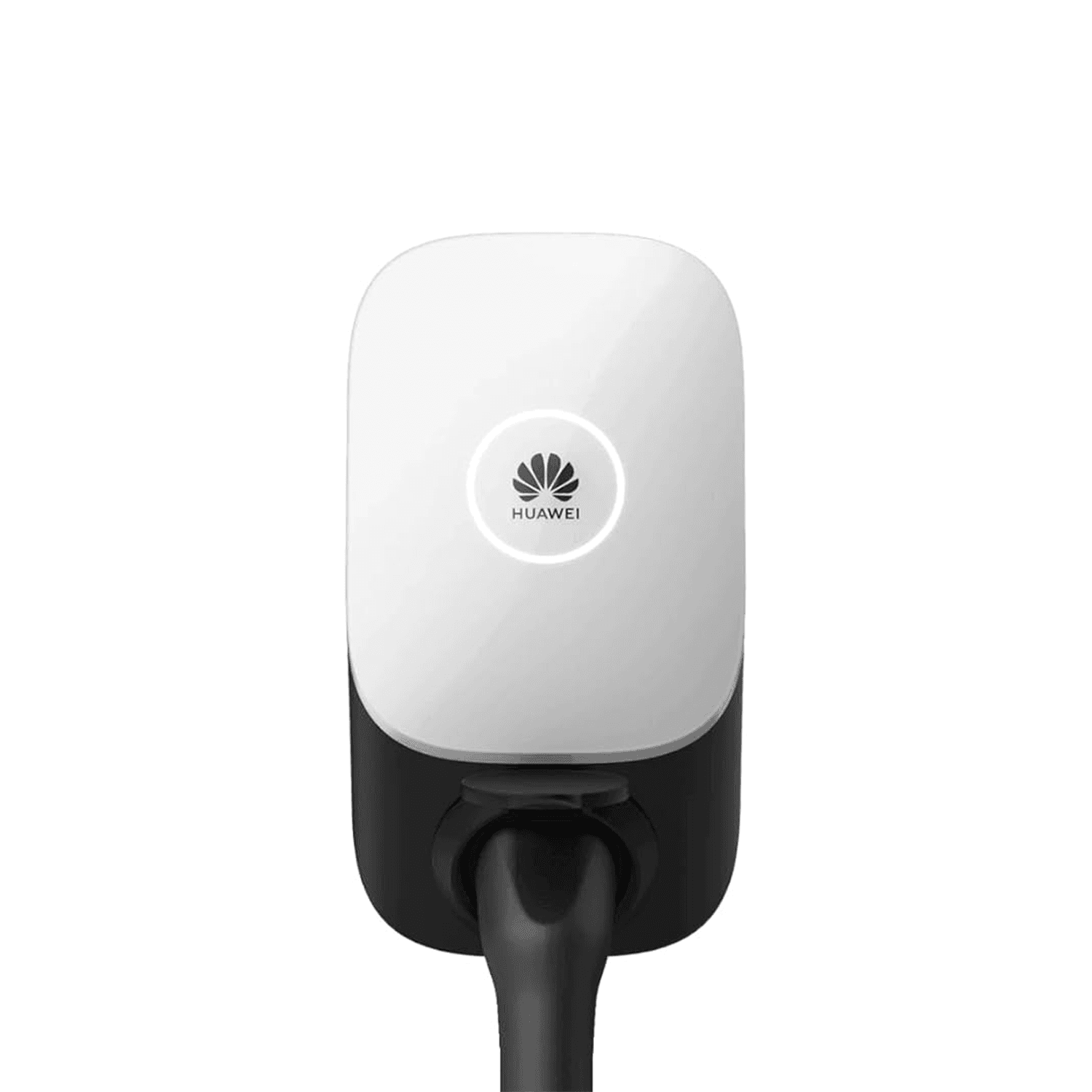

SCharger-22KT-S0
Huawei
Huawei wallbox single/three-phase 22kW, 6-32A, RFID, without cable with T2 socket
Specifications
Maximum Charging Power22 kW
Operation 1PH/3PH
Rated Voltage400
Rated Currentgiu-32 A
Vehicle ConnectionSocket T2
Communication ProtocolOCPP1.6, Modbus-TCP
Communication TypeWi-Fi, Ethernet
Charger StatusLED, App
AuthenticationRFID, app, Bluetooth
Remote ManagementApp FusionSolar
Cable LockCableE-Lockviaapp
Installation ModeWall
Protection Class (IP Rating)IP54
Protection Class (IK Rating)IK10
Dimensions335x180x145 mm
Weight3,1 kg
Features
Plug&Play
Dynamic charging
Scheduled charging
PV-preferred charging
Next Trip Mode
