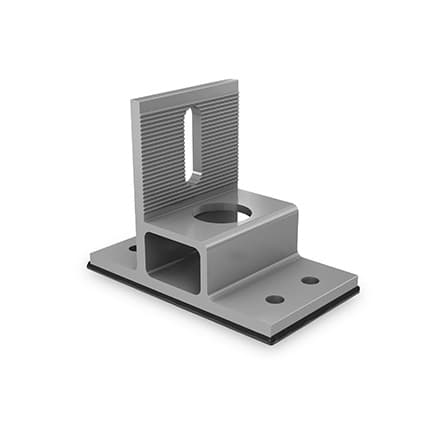

2003393 - Dachbefestigung für Bitumendächer
K2 Systems
Aluminium roof fastener with SingleRail connection for bitumen roofs. Can be screwed into timber rafters and timber or OSB panelling. Installation directly on the insulation is not possible. Base plate: 89 mm x 50.8 mm. Total height of component: 68 mm. Height adjustment: 36.9 mm - 57.5 mm.
Specifications
Weight0,12 kg
Pieces per package20 Box
Pieces per pallet2,160 Pallet
sales unit20 pcs
