Optimizers
P801-4RM4MRY
SolarEdge

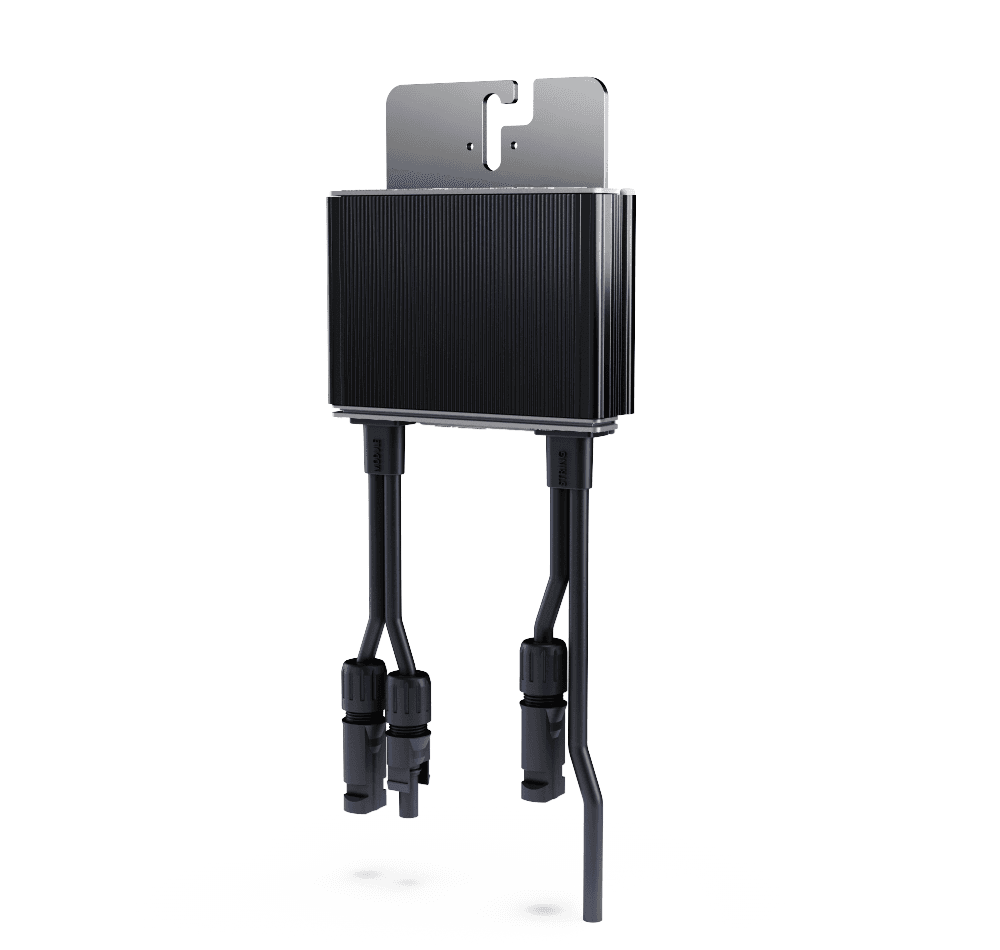

SolarEdge Power Optimizer P-Series, 800W, Isc 12.5A, Voc 125V, Input cable 0.16m, Output cable 0.9m
Specifications
Module-optimizer configuration02:01
DC input nominal power800 W
Absolute maximum DC input voltage (Voc)125 V
MPPT operating voltage range12.5-105 V
Maximum module short-circuit current (Isc)12.5 A
Maximum output current15 A
Maximum output voltage80 V
Output safety voltage1 V
Input cable length0.16 mm
Output cable length2.2 mm
Dimensions 129x153x49,5 mm
Weight 0.93 kg
Input/output connectorsMC4
Degree of protectionIP68
Compatible inverters? SE16K
Features
Superior efficiency (99.5%)
Module-level monitoring
Greater design flexibility
Rapid fault detection
Increased plant productivity
