Photovoltaic modules

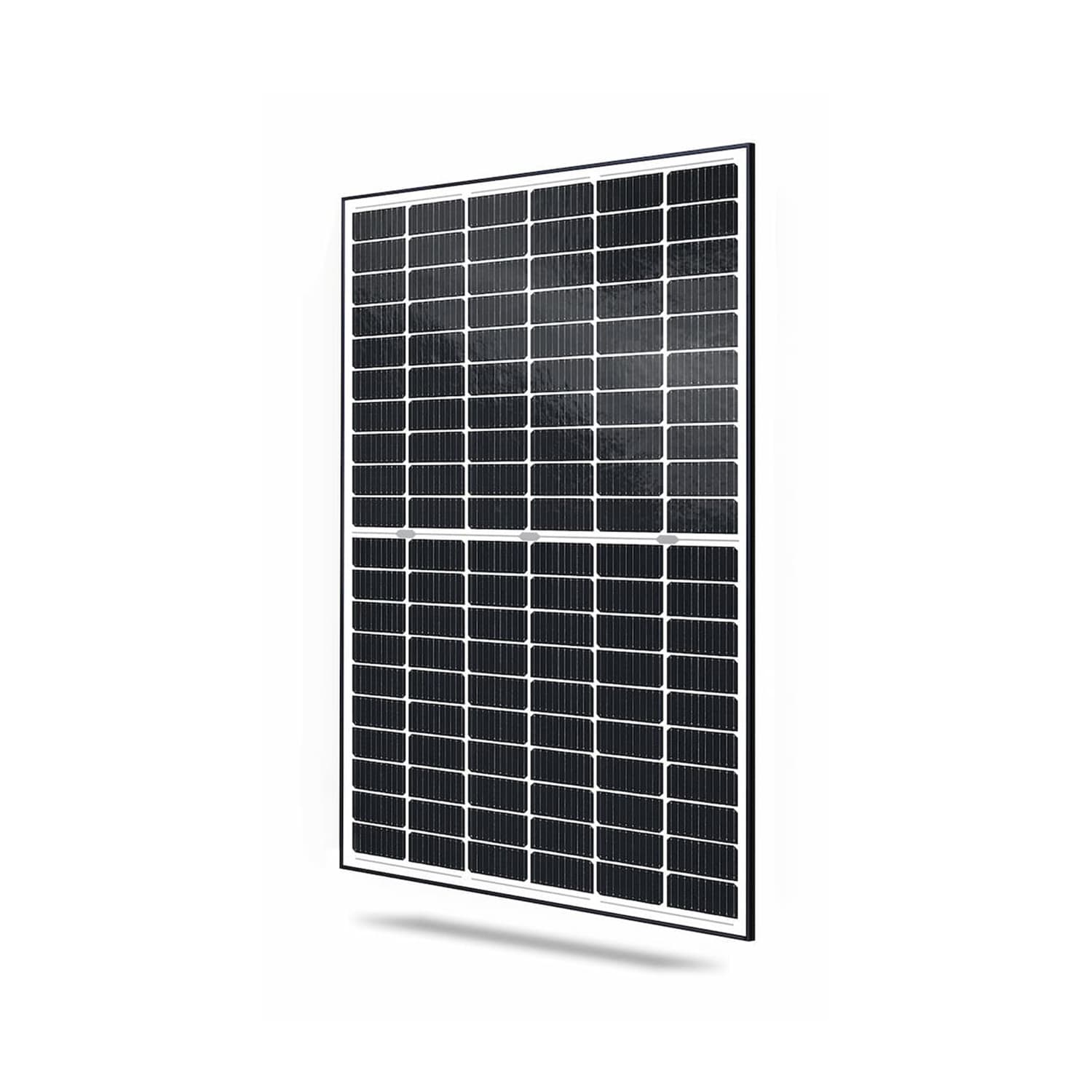

SOLID Framed Transparent B.120 505W
Solitek
Solitek SOLID Framed 505W, 120-cell, bifacial 2+2mm, transparent glass
Specifications
Nominal power - Pmax505 W
TechnologyN-Type TOPCon
TypologyBifacciale
Number of cells120 (60x2)
Front glass2 mm
Back glass2 mm
Dimensions1996x1134x30 mm
Weight29 Kg
Voltage at maximum power (Vmp)36.47 V
Current at maximum power (Imp)13.85 A
Open circuit voltage (Voc)42.28 V
Short-circuit current (Isc)14.25 A
Module efficiency STC22.31 %
Operating temperature-0,470588235 °C
Maximum system voltage1,500 VDC
Power tolerance0/+5 W
Temperature coefficient Pmax-0.3 %/°C
Temperature coefficient Voc-0.25 %/°C
Temperature coefficient Isc0.05 %/°C
Maximum test load (wind/snow)3600/8100 Pa
Hail resistance30 mm
Nr. of pieces per pallet31 pcs/pallet
Nr. of pieces per container744 pcs/container
Product warranty30 years
Production warranty90.0% - 30 years
Cable length1,200 mm
Features
Made in EU (Lithuania)
ENEA register letter A
Fire class 1
Increased load resistance 8100Pa
Hail resistance class 3 (30mm)
Resistant to salt mist and ammonia
Contains 35% recycled glass
