Photovoltaic modules

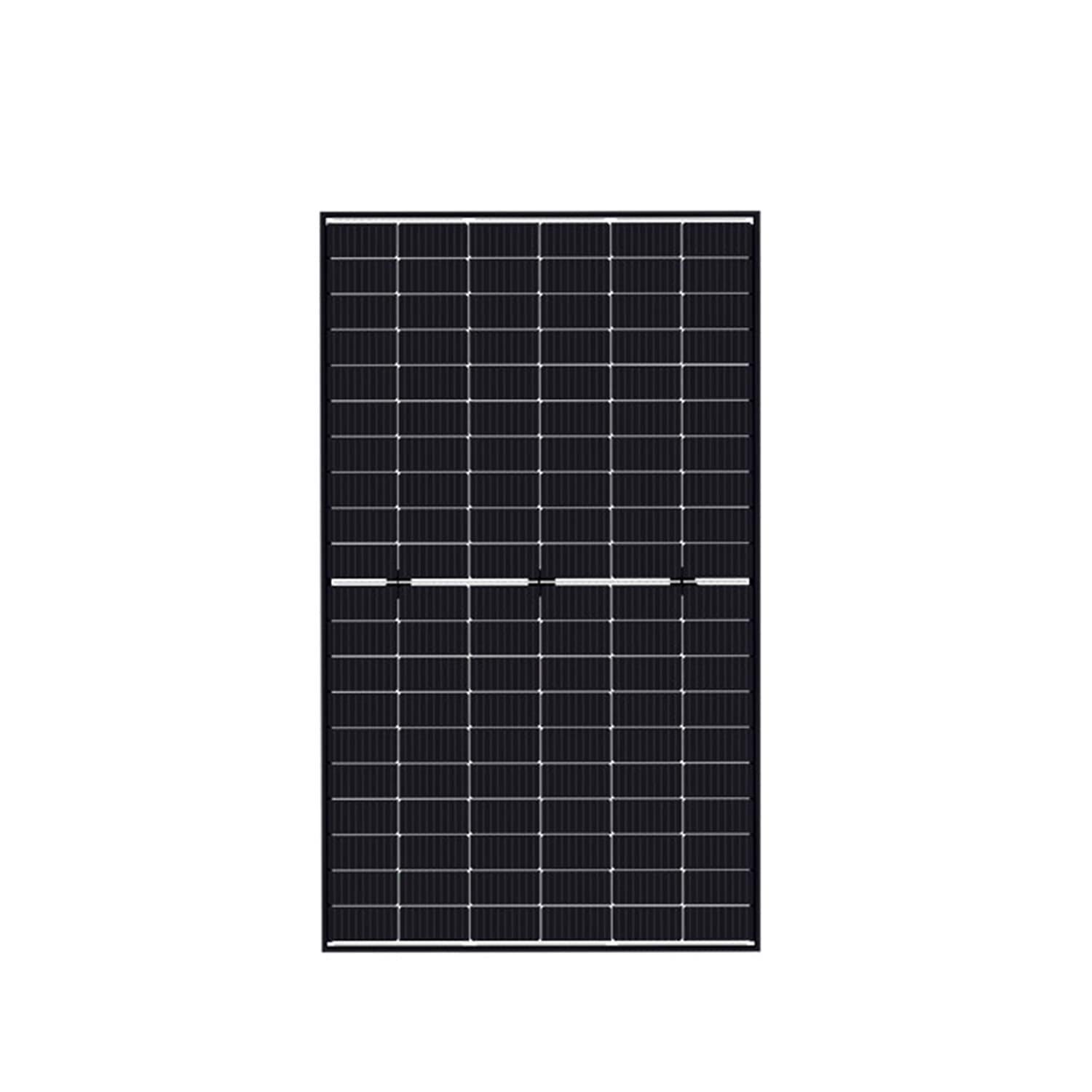

SPV425-R54PDTL
SolarEdge
SolarEdge Smart module 375W + S440, N-Type, 54-cell, bifacial
Specifications
Nominal power - Pmax425 W
TechnologyN-Type TOPCon
TypologyBifacciale
Number of cells108 (54x2)
Front glass1.6 mm
Back glass1.6 mm
Dimensions1722x1134x30 mm
Weight21.74 kg
Voltage at maximum power (Vmp)32.1 V
Current at maximum power (Imp)13.24 A
Open circuit voltage (Voc)38.73 V
Short-circuit current (Isc)13.89 A
Module efficiency STC21.76 %
Operating temperature-0,470588235 °C
Maximum system voltage1,000 VDC
Power tolerance0/+5 %
Temperature coefficient Pmax-0.3 %/°C
Temperature coefficient Voc-0.25 %/°C
Temperature coefficient Isc0.05 %/°C
Maximum test load (wind/snow)2400/5400 Pa
Hail resistance35 mm
Bifaciality coefficient80±5 %
Nr. of pieces per pallet36 pz
Product warranty25 years
Production warranty89.4% - 25 years
Features
25-year warranty
Pre-assembled S440 optimizer
Integrated SafeDCTM
Connector anomaly detection
Simplified cable management
