Photovoltaic modules
TWMHF-66HD700W
Tongwei

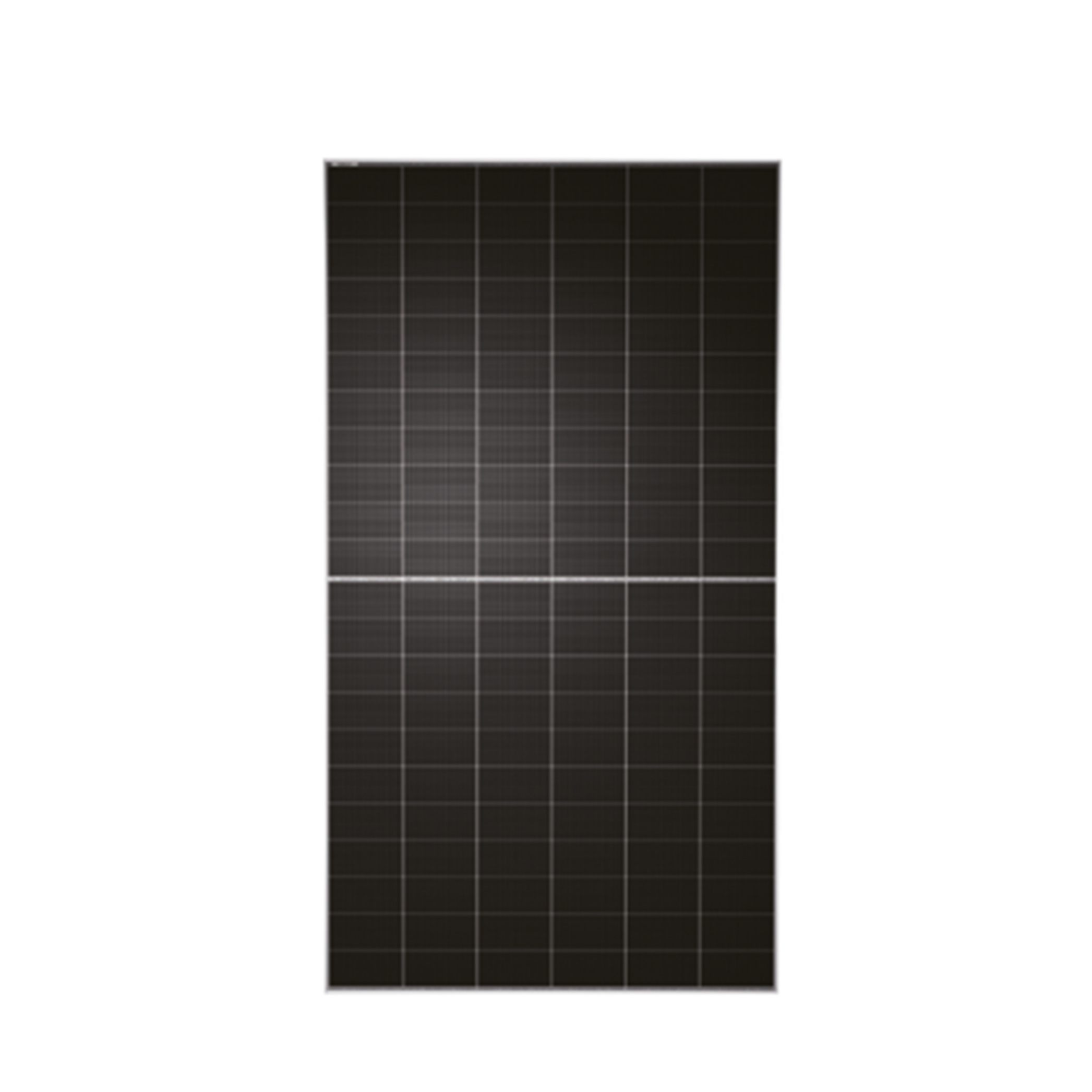

Tongwei 700W, 66-cell G12R, N-Type HJT, bifacial
Specifications
Nominal power - Pmax700 W
TechnologyN-Type HJT
TypologyBifacciale
Number of cells132 (66x2)
Front glass2 mm
Back glass2 mm
Dimensions2384x1303x35 mm
Weight38.7 Kg
Voltage at maximum power (Vmp)41.68 V
Current at maximum power (Imp)16.8 A
Open circuit voltage (Voc)48.8 V
Short-circuit current (Isc)17.61 A
Module efficiency STC22.5 %
Operating temperature-0,470588235 °C
Maximum system voltage1,500 VDC
Power tolerance0/+5 W
Temperature coefficient Pmax-0.26 %/°C
Temperature coefficient Voc-0.24 %/°C
Temperature coefficient Isc0.04 %/°C
Maximum test load (wind/snow)2400/5400 Pa
Hail resistance25 mm
Bifaciality coefficient80±5 %
Nr. of pieces per pallet31 pcs/pallet
Nr. of pieces per container558 pcs/container
Product warranty12 years
Production warranty88.12% - 30 years
Cable length + 400 /- 200 mm
Features
Fire class 1
Resistant to salt mist and ammonia
HJT technology for a higher yield
Dual-sided power generation
Anti-PID guaranteed
