Optimizers
S500-1GM4MRM
SolarEdge

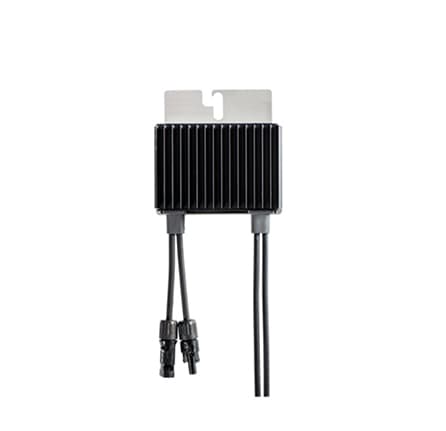

SolarEdge Power Optimizer S-Series, 500W, Isc 15A, Voc 60V
Specifications
Module-optimizer configuration01:01
DC input nominal power500 W
Absolute maximum DC input voltage (Voc)60 V
MPPT operating voltage rangeago-60 V
Maximum module short-circuit current (Isc)15 A
Maximum output current15 A
Maximum output voltage80 V
Output safety voltage1 V
Input cable length0.1 mm
Output cable length0.1(-), 2.3(+) mm
Dimensions 129x155x30 mm
Weight 0.72 kg
Input/output connectorsMC4
Degree of protectionIP68
Features
Superior efficiency (99.5%)
Module-level monitoring
Greater design flexibility
Rapid fault detection
Increased plant productivity
