Optimizers
S650A-1DM4MBM
SolarEdge

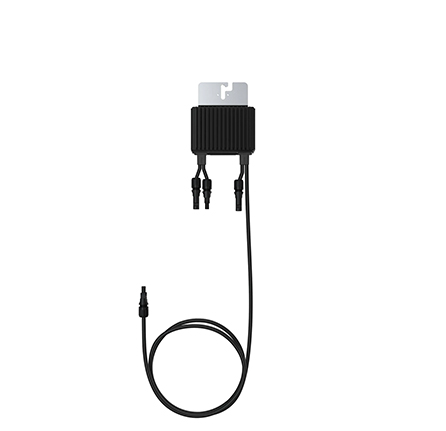

SolarEdge Power Optimizer S-Series, 650W, Isc 15A,Voc 80V
Specifications
Module-optimizer configuration01:01
DC input nominal power650 W
Absolute maximum DC input voltage (Voc)80 V
MPPT operating voltage range12.5-80 V
Maximum module short-circuit current (Isc)15 A
Maximum output current15 A
Maximum output voltage110 V
Output safety voltage1 V
Input cable length0.1 mm
Output cable length0.1(-), 2.3(+) mm
Dimensions 129x165x45 mm
Weight 0.79 kg
Input/output connectorsMC4
Degree of protectionIP68
Features
Superior efficiency (99.5%)
Module-level monitoring
Greater design flexibility
Rapid fault detection
Increased plant productivity
