Photovoltaic inverters

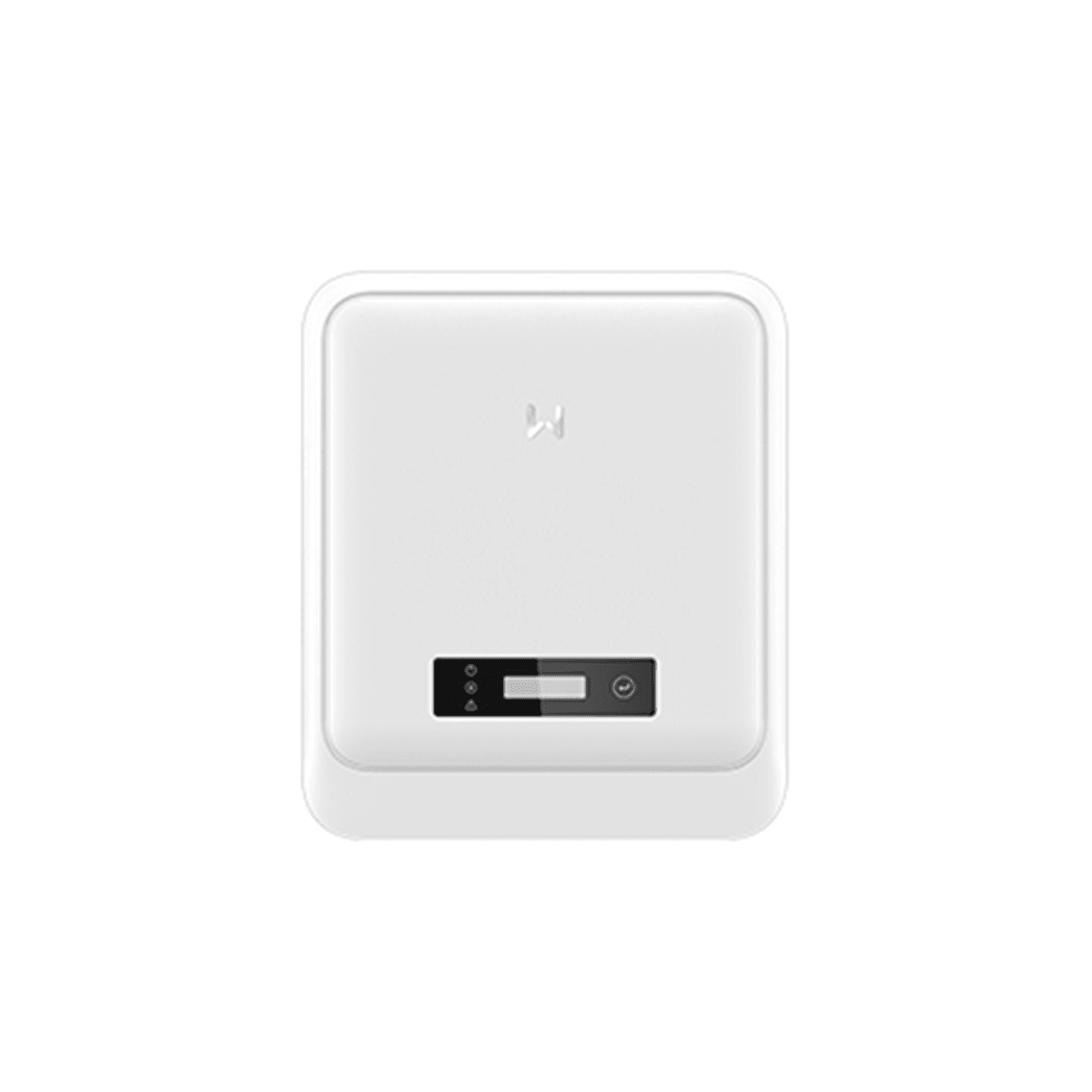

GW3000-DNS-30
GoodWe
GOODWE DNS G3 1PH 3000WP, 16A, SEZ. DC, WIFI
Specifications
Maximum DC input power3,000 kw
Maximum DC input voltage600 V
MPPT operating voltage range40-560 V
Start-up voltage50 V
Nominal input voltage360 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT23 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power3,300 W
Nominal AC output voltage220/230/240 V
AC output voltage range196-311 V
Max. AC output current14.4 A
Dimensions350x410x143 mm
Weight12.8 kg
Protection classIP66
