Photovoltaic inverters

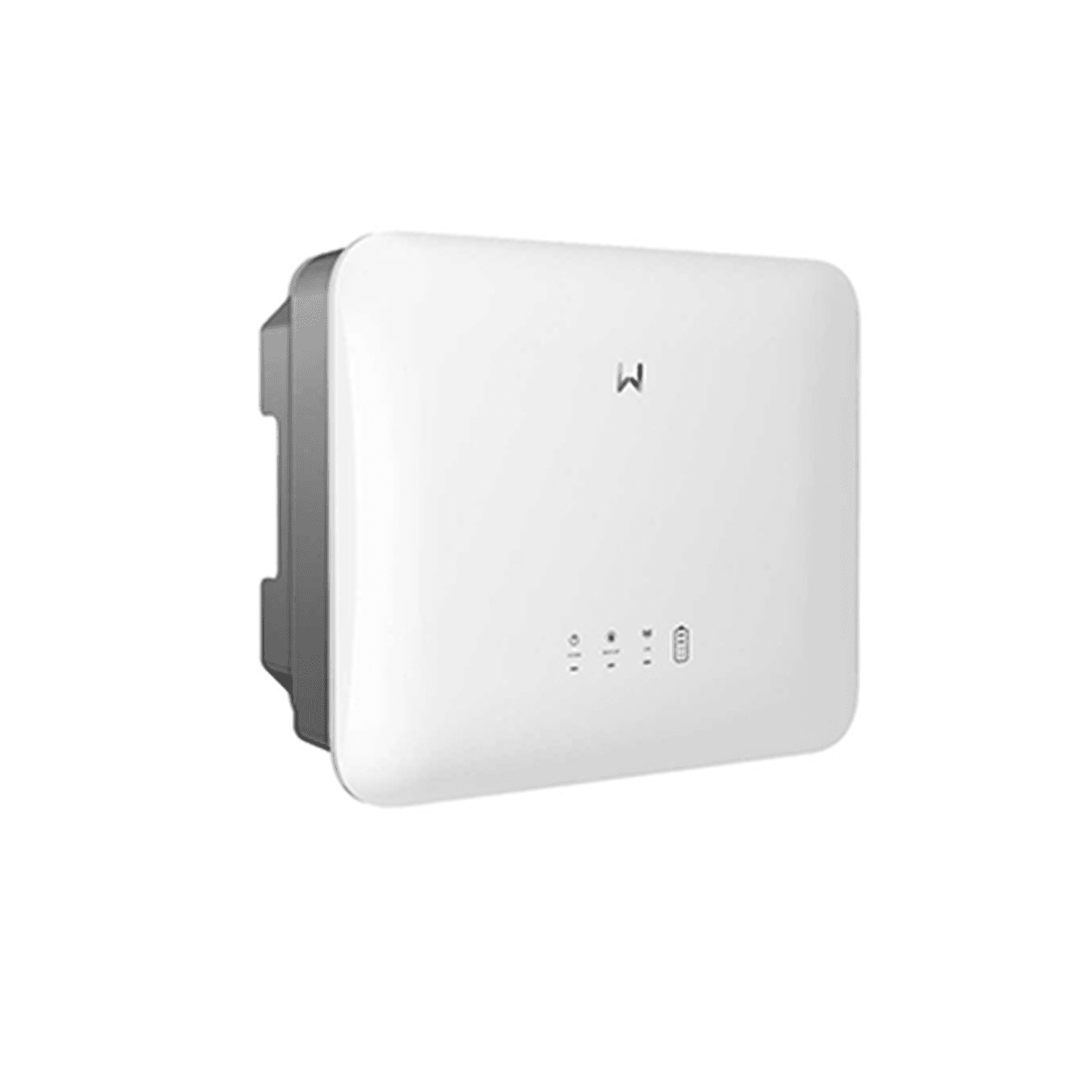

GW3600-DNS-30
GoodWe
GOODWE DNS G3 1PH 3600WP, 16A, SEZ. DC, WIFI
Specifications
Maximum DC input power3,600 kw
Maximum DC input voltage600 V
MPPT operating voltage range40 - 560 V
Start-up voltage50 V
Nominal input voltage360 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT23 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power3960*3 W
Nominal AC output voltage220 / 230 / 240 V
AC output voltage range196-311 V
Max. AC output current17.3*2 A
Dimensions350 Ă— 410 Ă— 143 mm
Weight12.8 kg
Protection classIP66
