Photovoltaic modules

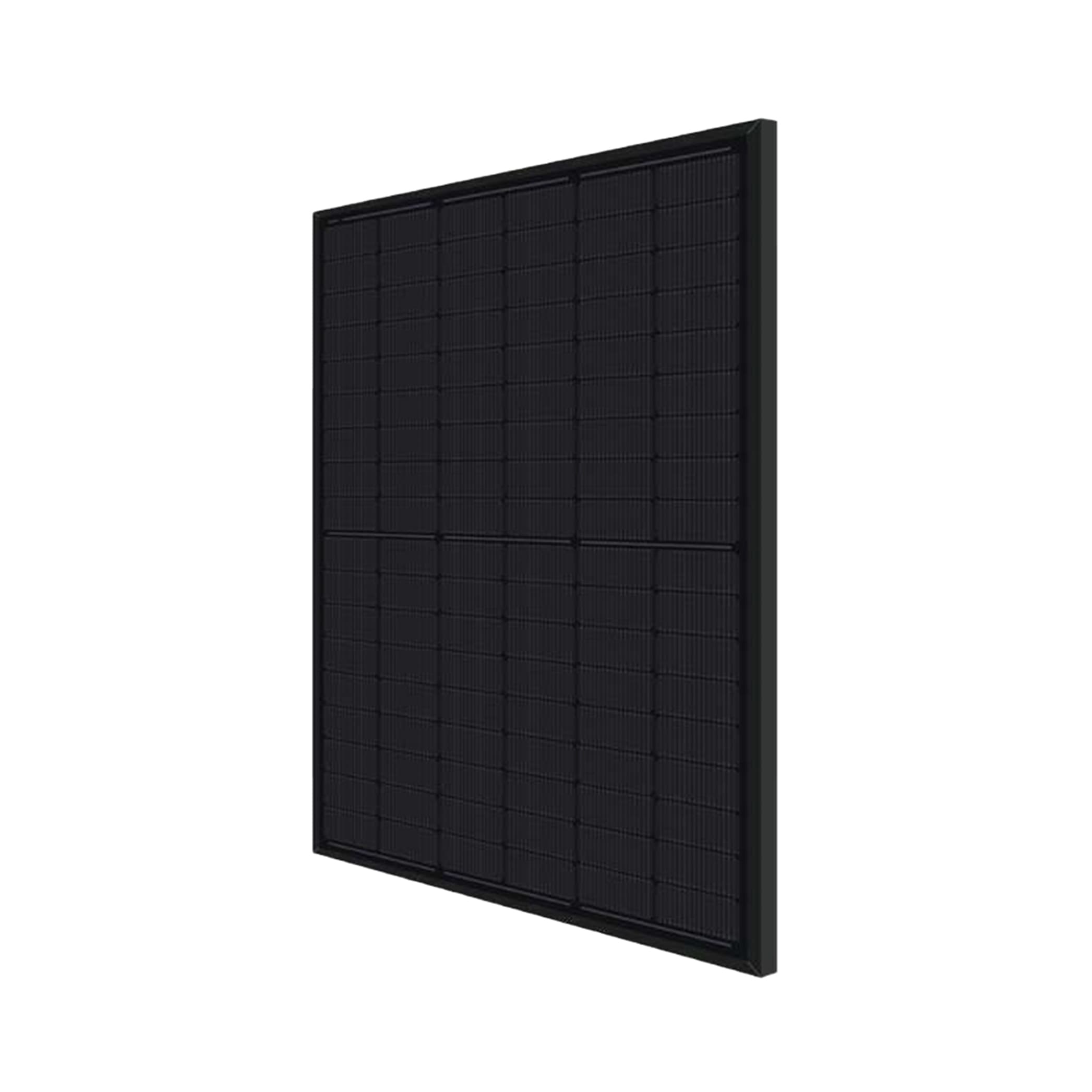

ESM480-60HM10-TB
Eurener
Eurener Nexa DG Bif 480W, 60-cell M10, all-black, bifacial, class A
Specifications
Nominal power - Pmax480 W
TechnologyN-Type TOPCon
TypologyBifacciale
Number of cells120 (60x2)
Front glass2 mm
Back glass2 mm
Dimensions1909x1134x30 mm
Weight27 Kg
Voltage at maximum power (Vmp)35.42 V
Current at maximum power (Imp)14.91 A
Open circuit voltage (Voc)42.71 V
Short-circuit current (Isc)15.72 A
Module efficiency STC22.18 %
Operating temperature-0,470588235 °C
Maximum system voltage1,500 VDC
Power tolerance0/+3 %
Temperature coefficient Pmax-0.29 %/°C
Temperature coefficient Voc-0.28 %/°C
Temperature coefficient Isc0.05 %/°C
Maximum test load (wind/snow)2400/5400 Pa
Hail resistance30 mm
Bifaciality coefficient80±5 %
Nr. of pieces per pallet36 pcs/pallet
Nr. of pieces per container864 pcs/container
Product warranty30 years
Production warranty88.0% - 30 years
Cable length1000 (±20%) mm
Features
Made in the EU (Spain)
ENEA register letter A
Hail resistance class 3 (30mm)
30-year warranty
Cell efficiency 24.15%
