Photovoltaic modules
ESM580-72HM10-WS
Eurener

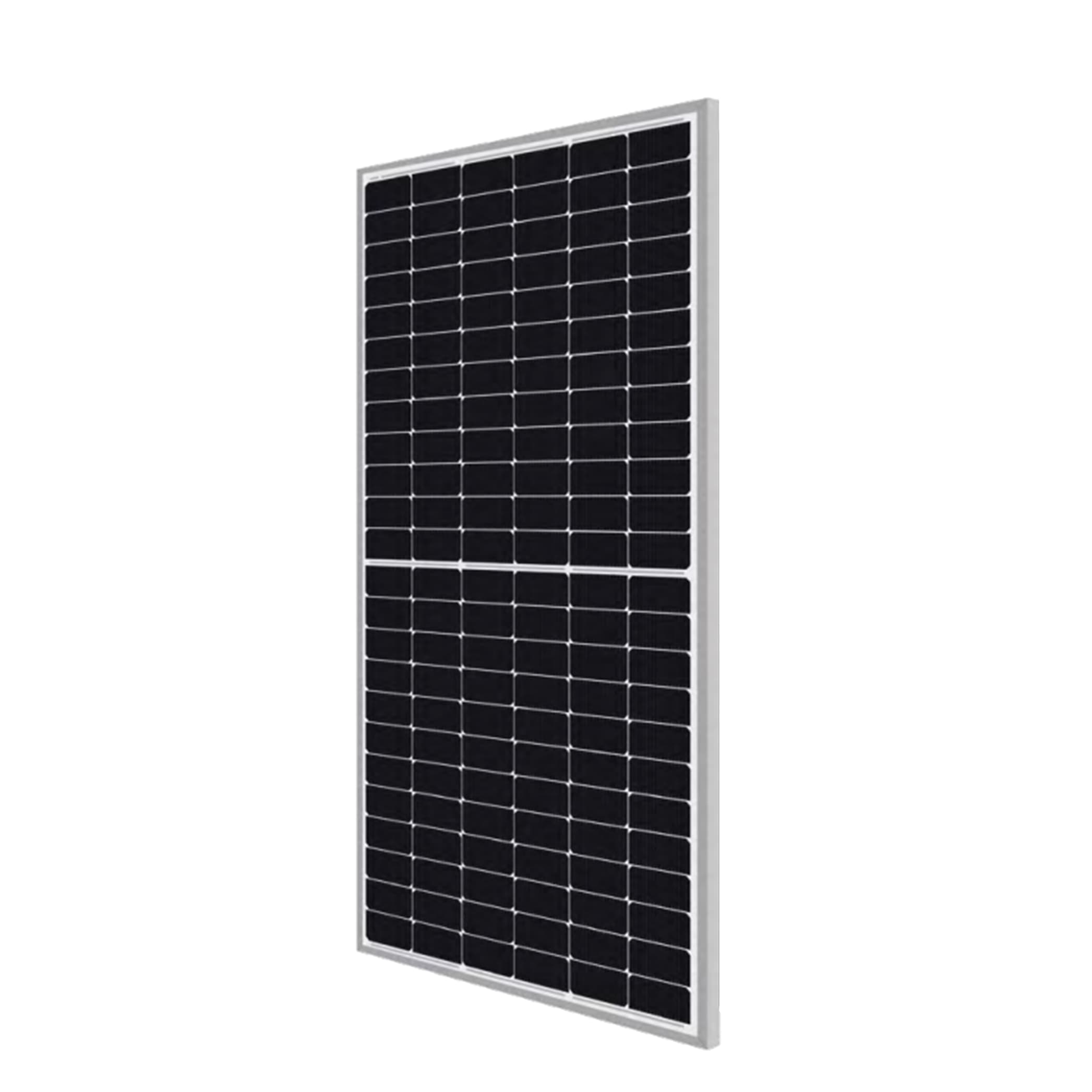

Eurener Nexa Plus 580W, 72-cell M10, monofacial, class A
Specifications
Nominal power - Pmax580 W
TechnologyN-Type TOPCon
TypologyMonofacciale
Number of cells144 (72x2)
Front glass3.2 mm
Dimensions2278x1134x30 mm
Weight28 Kg
Voltage at maximum power (Vmp)42.35 V
Current at maximum power (Imp)13.7 A
Open circuit voltage (Voc)51.07 V
Short-circuit current (Isc)14.49 A
Module efficiency STC22.47 %
Operating temperature-0,470588235 °C
Maximum system voltage1,500 VDC
Power tolerance0/+3 %
Temperature coefficient Pmax-0.29 %/°C
Temperature coefficient Voc-0.25 %/°C
Temperature coefficient Isc0.05 %/°C
Maximum test load (wind/snow)2400/5400 Pa
Hail resistance25 mm
Nr. of pieces per pallet36 pcs/pallet
Nr. of pieces per container720 pcs/container
Product warranty30 years
Production warranty88.0% - 30 years
Cable length1200 (±20%) mm
Features
Made in the EU (Spain)
ENEA register letter A
Hail resistance class 3 (30mm)
30-year warranty
Cell efficiency 24
32%
