Photovoltaic modules

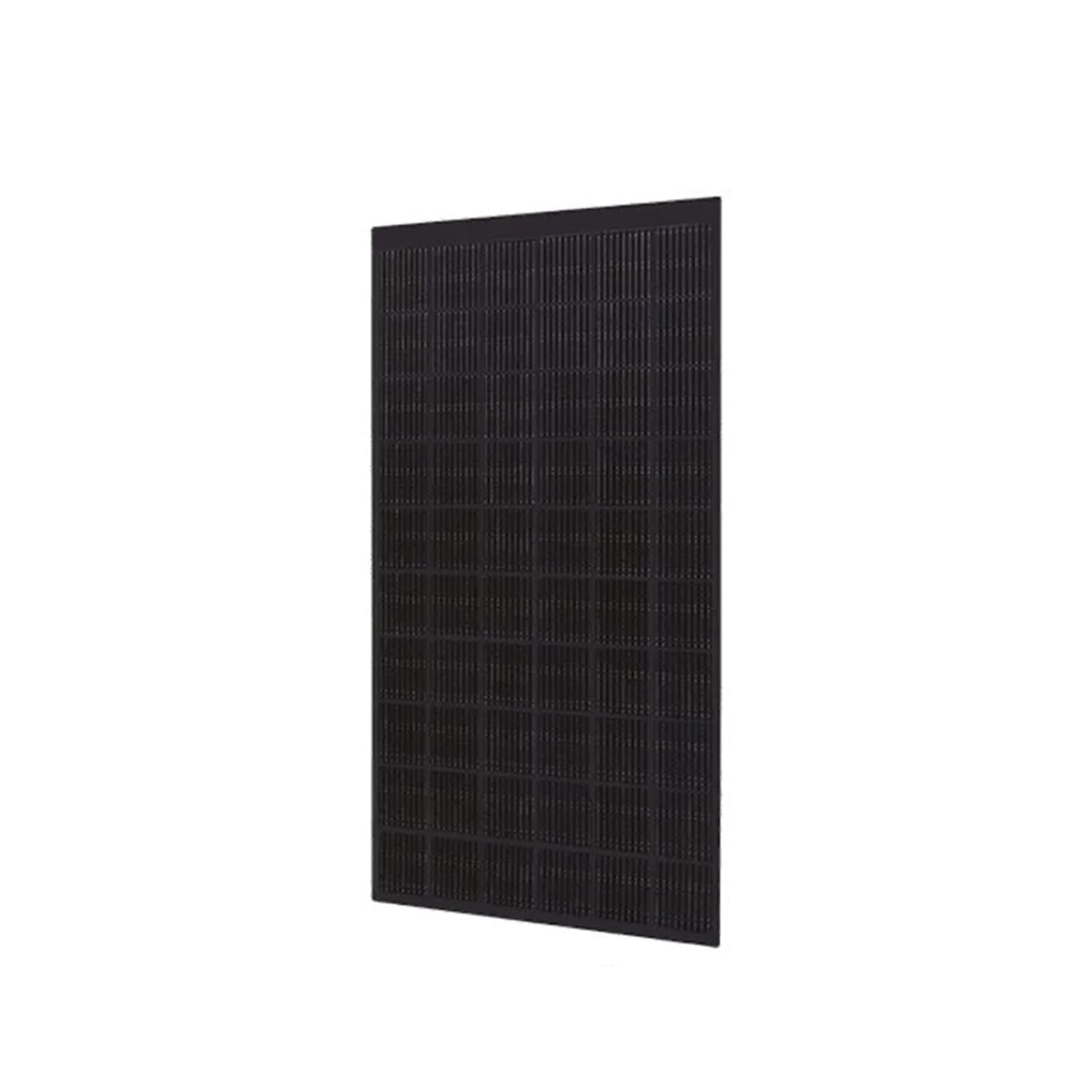

SOLID Solrif Full-black N B.108 370W 2+2 mm
Solitek
Solitek Solrif 108-cell, all-black, bifacial 2+2mm
Specifications
Nominal power - Pmax370 W
TechnologyN-Type TOPCon
TypologyBifacciale
Number of cells60 (10x6)
Front glass3 mm
Back glass3 mm
Dimensions1770x1049x7.1 mm
Weight30 kg
Voltage at maximum power (Vmp)34.86 V
Current at maximum power (Imp)10.62 A
Open circuit voltage (Voc)40.5 V
Short-circuit current (Isc)11.18 A
Module efficiency STC19.92 %
Operating temperature-0,470588235 °C
Maximum system voltage1,000 VDC
Power tolerance0/+5 %
Temperature coefficient Pmax-0.36 %/°C
Temperature coefficient Voc-0.27 %/°C
Temperature coefficient Isc0.04 %/°C
Maximum test load (wind/snow)3600/8100 Pa
Hail resistance30 mm
Nr. of pieces per pallet25 pz
Nr. of pieces per container700 pz
Product warranty30 years
Production warranty87.0% - 30 years
Cable length1,200 mm
Features
Made in EU (Lithuania)
ENEA register letter A
Fire class 1
Increased load resistance 8100Pa
Hail resistance class 3 (30mm)
Resistant to salt mist and ammonia
Contains 35% recycled glass
