Photovoltaic inverters

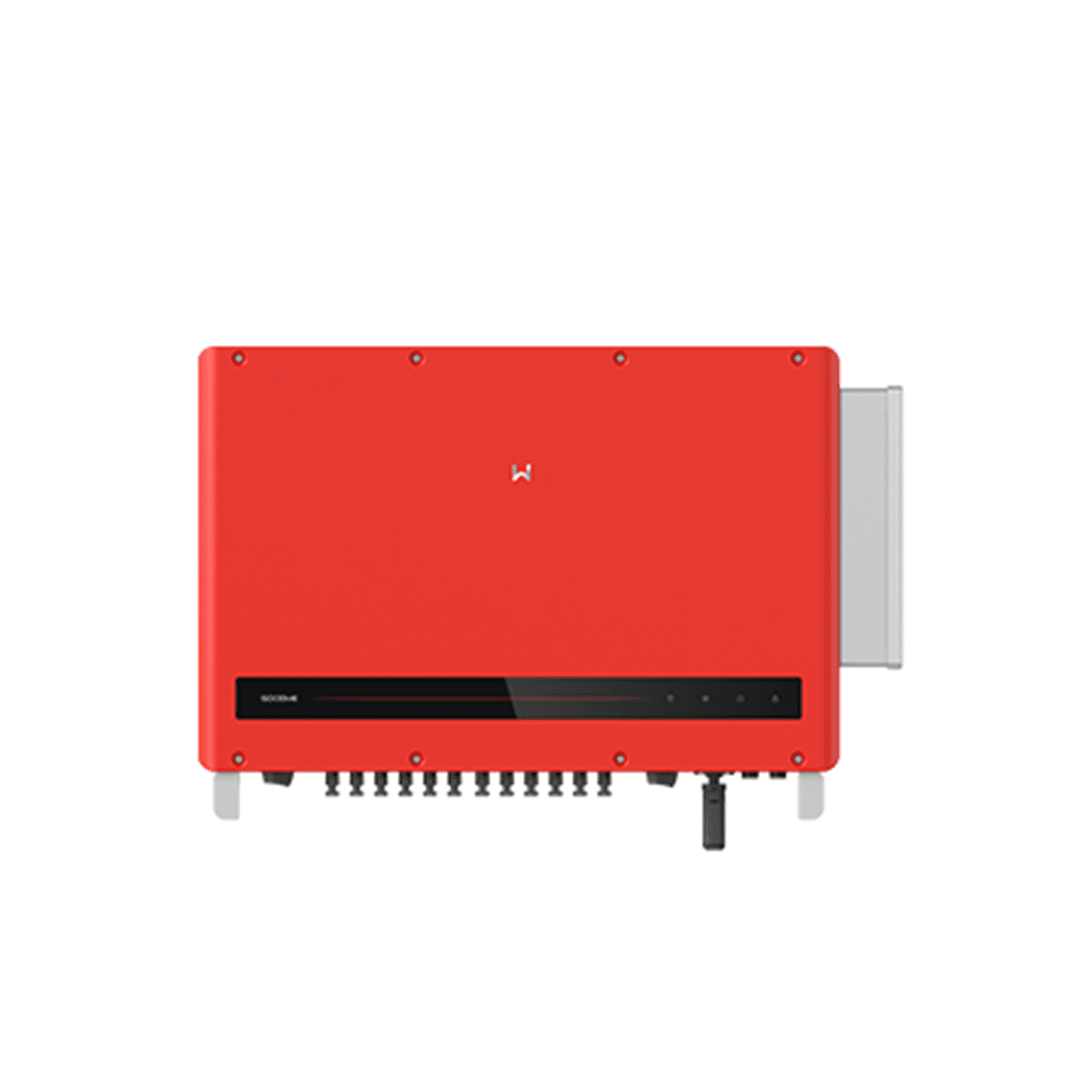

GW100K-HT
GoodWe
GOODWE HT 3PH 100KW, SEZ. DC, BT
Specifications
Maximum DC input power100 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range180-1000 V
Start-up voltage200 V
Nominal input voltage600 V
Max. input current per MPPT30 A
Max. short-circuit current per MPPT45 A
Number of MPPT10
Number of strings per MPPT2
Maximum AC power110 KW
Nominal AC output voltage400, 3L / N / PE o 3L / PE V
AC output voltage range320-440 V
Max. AC output current167 A
Dimensions1008 Ă— 678 Ă— 343 mm
Weight93.5 kg
Protection classIP66
