Photovoltaic inverters

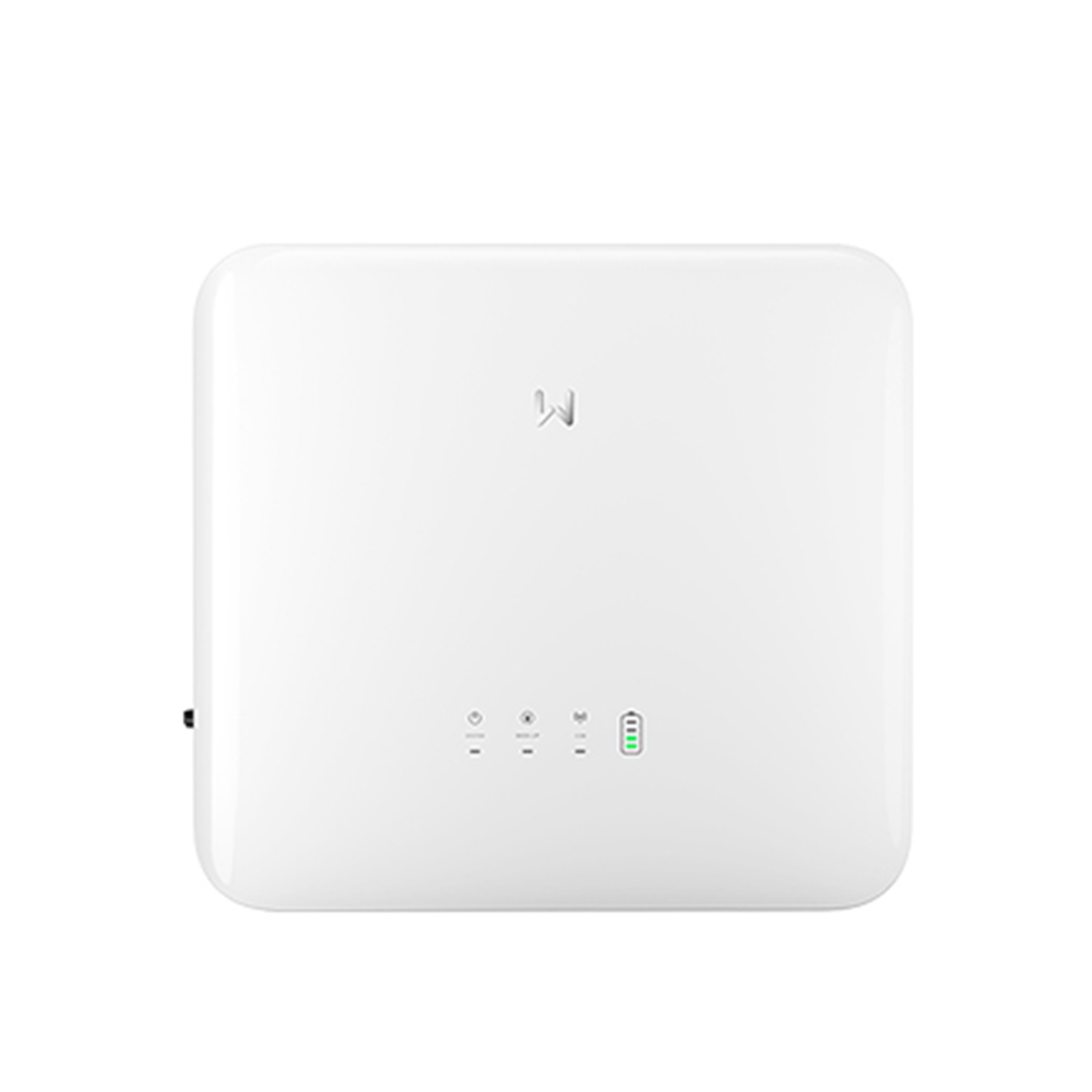

GW15K-ET-20
GoodWe
GOODWE ET G2 3PH 15KW, IBRIDO, HV, BACKUP
Specifications
Maximum DC input power15 kw
Maximum DC input voltage1,000 V
MPPT operating voltage range120-850 V
Start-up voltage150 V
Nominal input voltage620 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT24 A
Number of MPPT3
Number of strings per MPPT1
Maximum AC power20,000 W
Nominal AC output voltage400 / 380, 3L / N / PE V
AC output voltage range170-290 V
Max. AC output current26.1 A
Dimensions496 Ă— 460 Ă— 221 mm
Weight25 kg
Protection classIP66
