Photovoltaic inverters

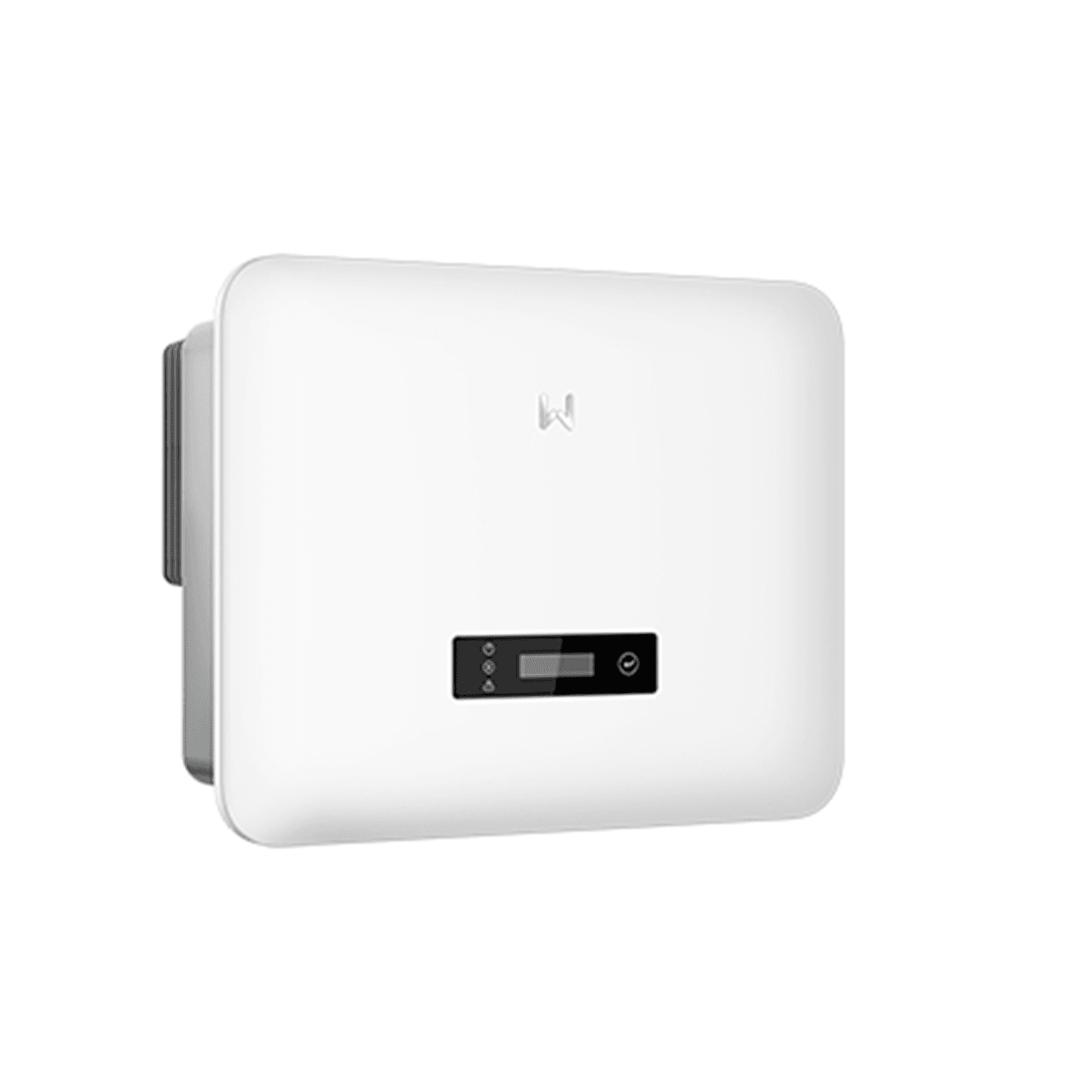

GW15K-SDT-30
GoodWe
GOODWE SDT G3 PLUS 3PH 15KW, 22A, SEZ. DC, WIFI
Specifications
Maximum DC input power15,000 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range140-1000 V
Start-up voltage160 V
Nominal input voltage600 V
Max. input current per MPPT22 A
Max. short-circuit current per MPPT22.7 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power16.5 W
Nominal AC output voltage220 / 380, 230 / 400, 240 / 415, 3L / N / PE o 3L / PE V
AC output voltage range180-280 V
Max. AC output current25 A
Dimensions491 Ă— 392 Ă— 210 mm
Weight16.2 kg
Protection classIP66
