Photovoltaic inverters

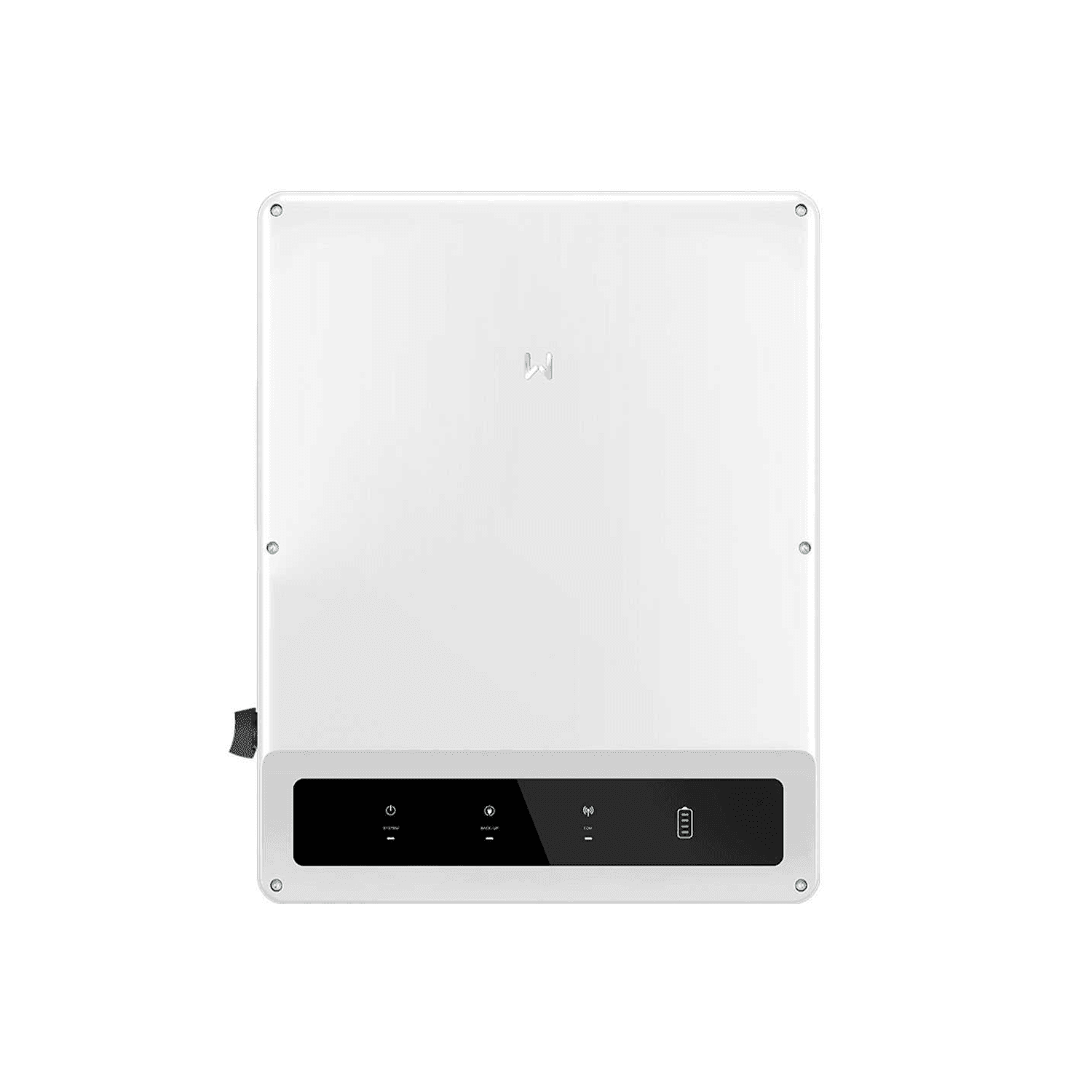

GW29.9K-ET
GoodWe
GOODWE ETT 3PH 29.9KW HYD, WIFI, SEZ.DC, METER, CT
Specifications
Maximum DC input power29,900 kw
Maximum DC input voltage1,000 V
MPPT operating voltage range200-850 V
Start-up voltage200 V
Nominal input voltage620 V
Max. input current per MPPT30 A
Max. short-circuit current per MPPT38 A
Number of MPPT3
Number of strings per MPPT 2 / 2 / 2
Maximum AC power29,900 W
Nominal AC output voltage380 / 400, 3L / N / PE V
AC output voltage range0-300 V
Max. AC output current43.3 A
Dimensions520 Ă— 660 Ă— 220 mm
Weight54 kg
Protection classIP66
