Photovoltaic inverters

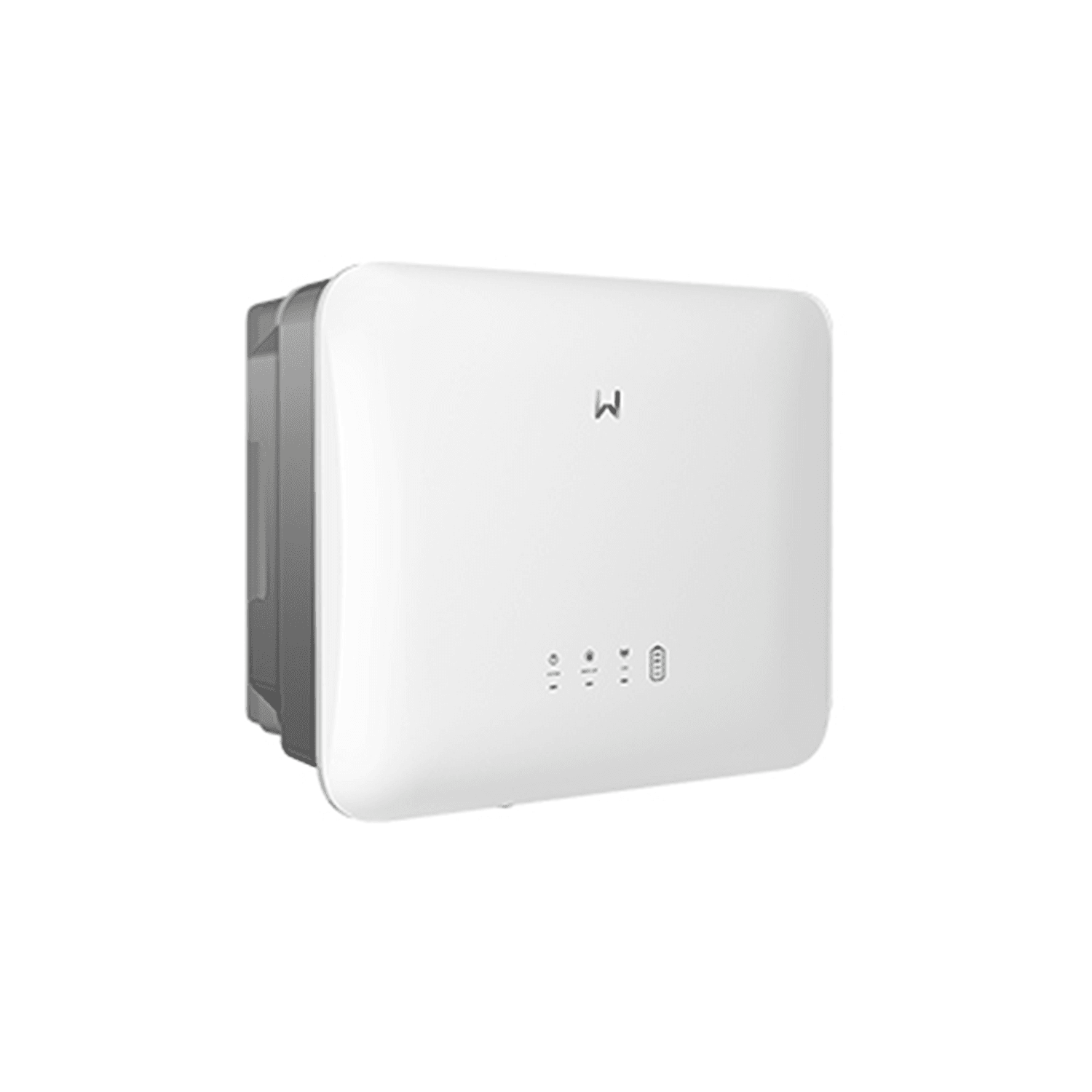

GW3000-ES-20
GoodWe
GOODWE ES G2 1PH 3000WP, IBRIDO, LV
Specifications
Maximum DC input power3,000 kw
Maximum DC input voltage600 V
MPPT operating voltage range60-550 V
Start-up voltage58 V
Nominal input voltage360 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT23 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power4,500 W
Nominal AC output voltage220 / 230 / 240 V
Max. AC output current13.6 A
Dimensions505.9 Ă— 434.9 Ă— 154.8 mm
Weight19.6 kg
Protection classIP65
