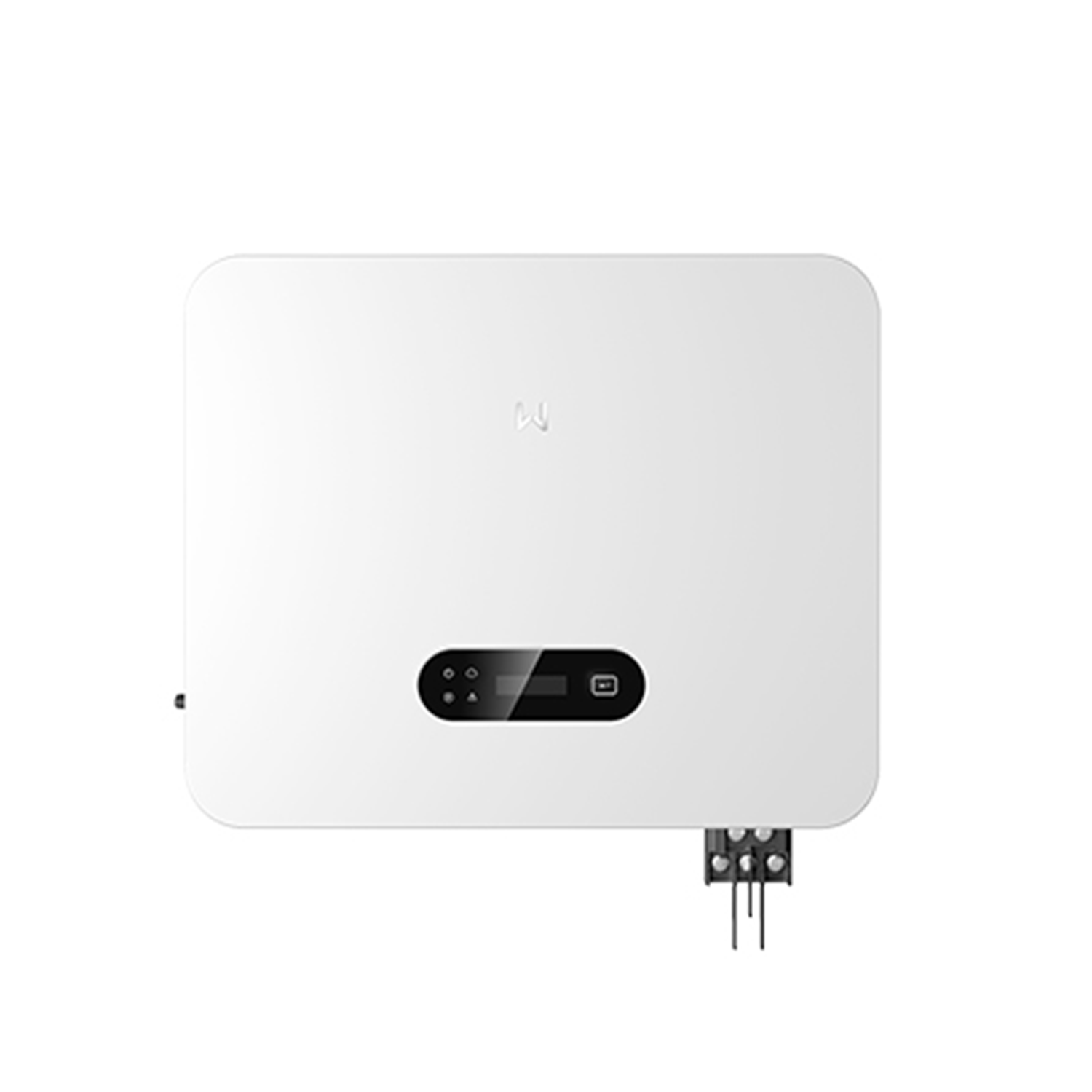

Photovoltaic inverters
GW30K-SDT-30
GoodWe
GOODWE SDT G3 3PH 30KW, SEZ. DC, AFCI, LAN&WIFI
Specifications
Maximum DC input power30,000 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range140-950 V
Start-up voltage160 V
Nominal input voltage600 V
Max. input current per MPPT40/40/40 A
Max. short-circuit current per MPPT50/50/50 A
Number of MPPT3
Number of strings per MPPT2
Maximum AC power30,000 W
Nominal AC output voltage220 / 380, 230 / 400, 240 / 415, 3L / N / PE o 3L / PE V
AC output voltage range180-260 V
Max. AC output current45.5 A
Dimensions585 Ă— 483 Ă— 230 mm
Weight30 kg
Protection classIP66
