Photovoltaic inverters

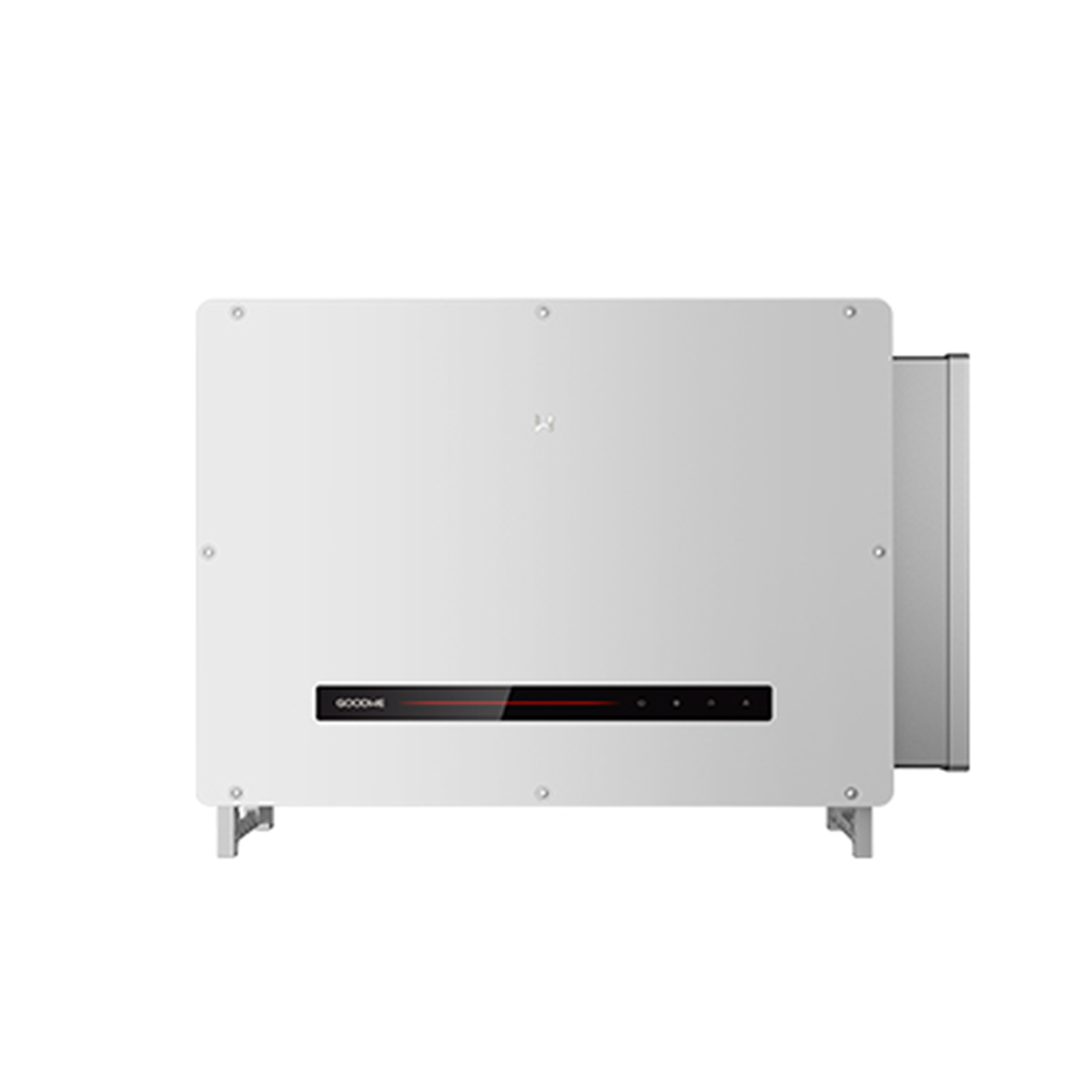

GW350K-UT
GoodWe
GOODWE UT 3PH 350KW, SEZ. DC, BT, SPD II
Specifications
Maximum DC input voltage1,500 V
MPPT operating voltage range480-1500 V
Start-up voltage500 V
Nominal input voltage1,160 V
Max. input current per MPPT30 A
Max. short-circuit current per MPPT50 A
Number of MPPT15
Number of strings per MPPT2
Maximum AC power352 W
Nominal AC output voltage800, 3L / PE V
AC output voltage range640-920 V
Max. AC output current254 A
Dimensions1120 Ă— 810 Ă— 368 mm
Weight124 kg
Protection classIP66
