Photovoltaic inverters

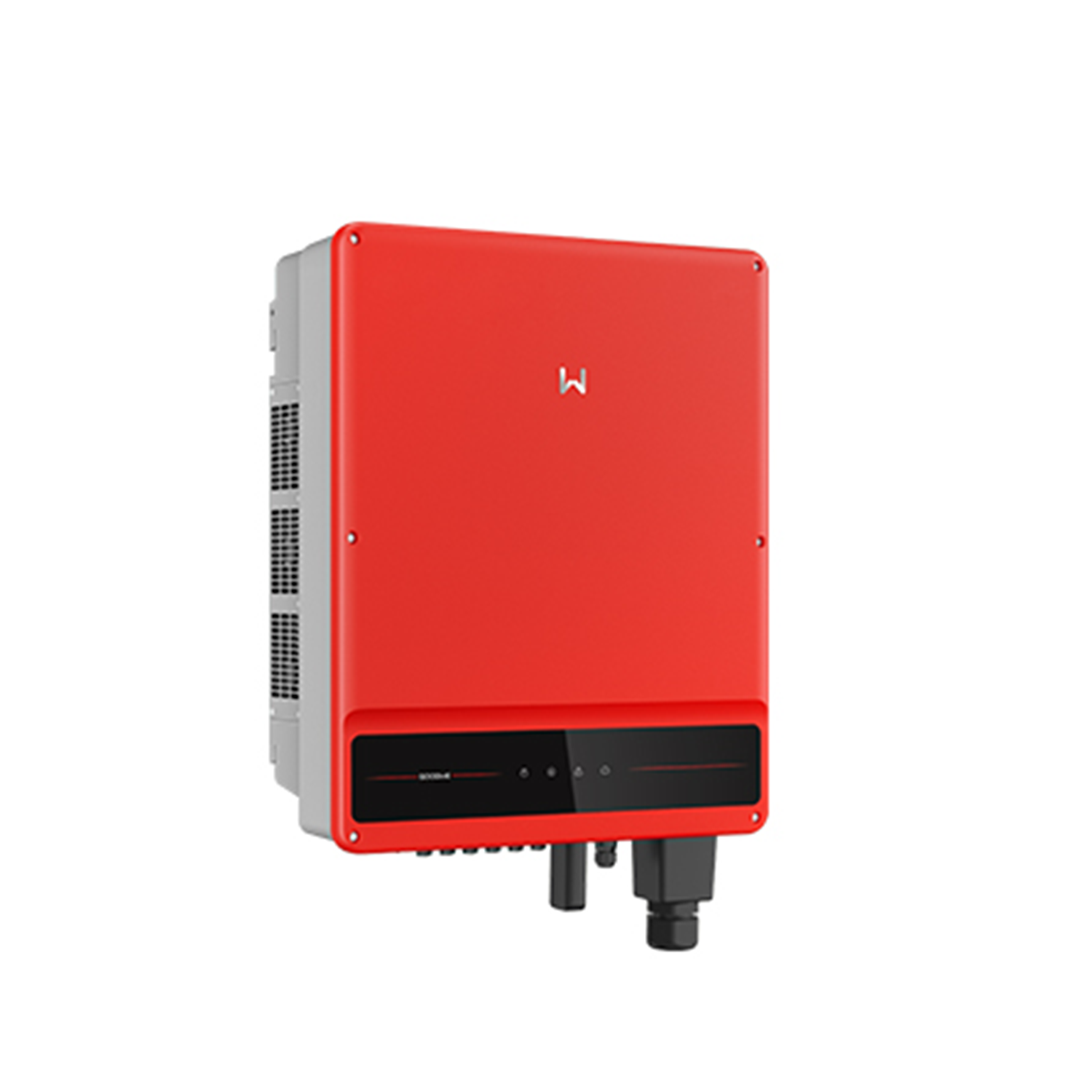

GW36K-MT
GoodWe
GOODWE SMT 3PH 36KW, SEZ. DC, DISPLAY
Specifications
Maximum DC input power36,000 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range200-950 V
Start-up voltage180 V
Nominal input voltage600 V
Max. input current per MPPT30 A
Max. short-circuit current per MPPT37.5 A
Number of MPPT3
Number of strings per MPPT2
Maximum AC power36 W
Nominal AC output voltage400, 3L / N / PE o 3L / PE V
AC output voltage range320-460 V
Max. AC output current53.3 A
Dimensions480 Ă— 590 Ă— 200 mm
Weight40 kg
Protection classIP65
