Photovoltaic inverters

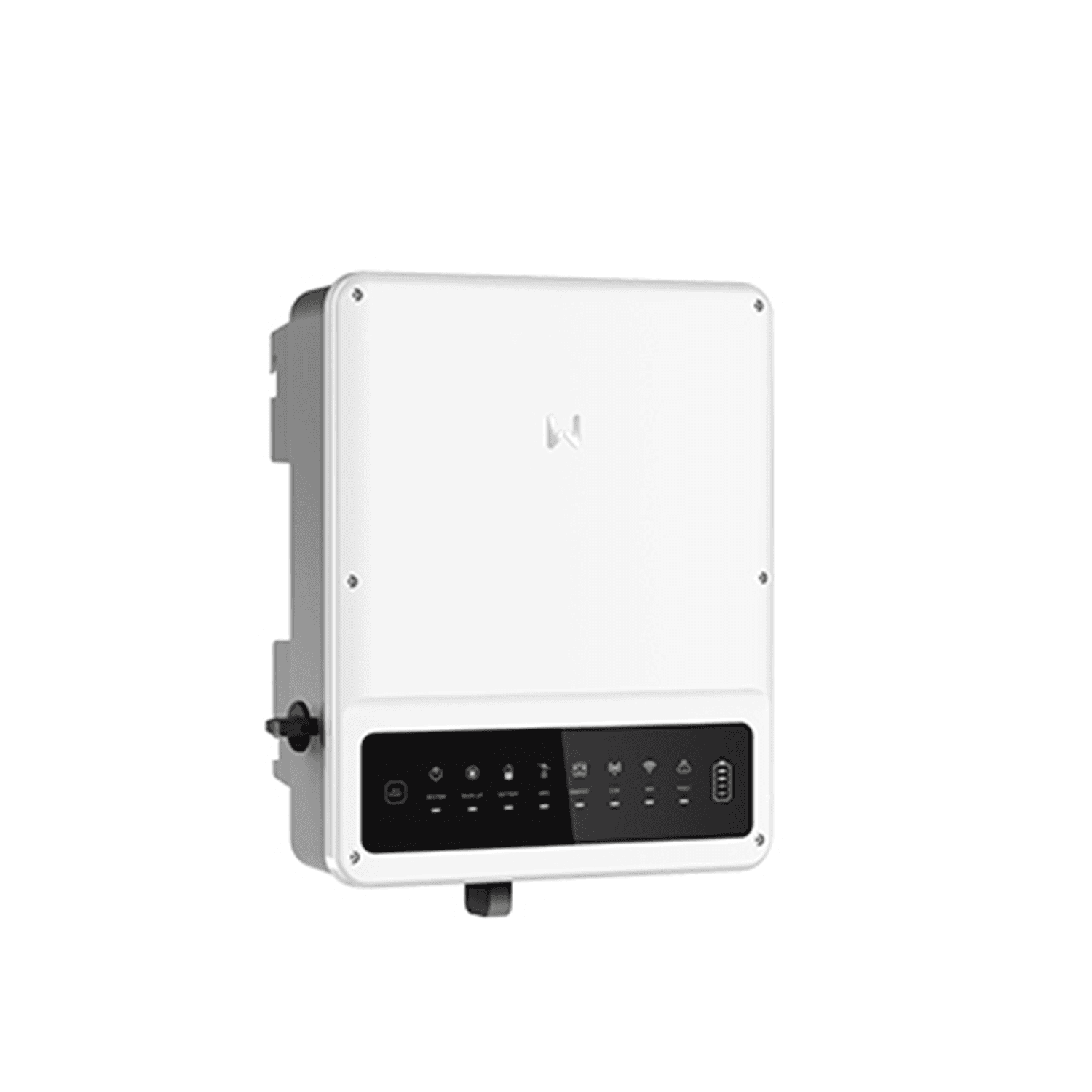

GW5000N-EH
GoodWe
GOODWE EH PLUS 1PH 5000WP, IBRIDO, HV
Specifications
Maximum DC input power5,000 kw
Maximum DC input voltage580 V
MPPT operating voltage range85 -460 V
Start-up voltage85 V
Nominal input voltage380 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT21.2 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power5000 / 5500*1 W
Nominal AC output voltage230 / 220 V
Max. AC output current21.7 A
Dimensions354 Ă— 433 Ă— 147 mm
Weight17 kg
Protection classIP65
