Photovoltaic inverters

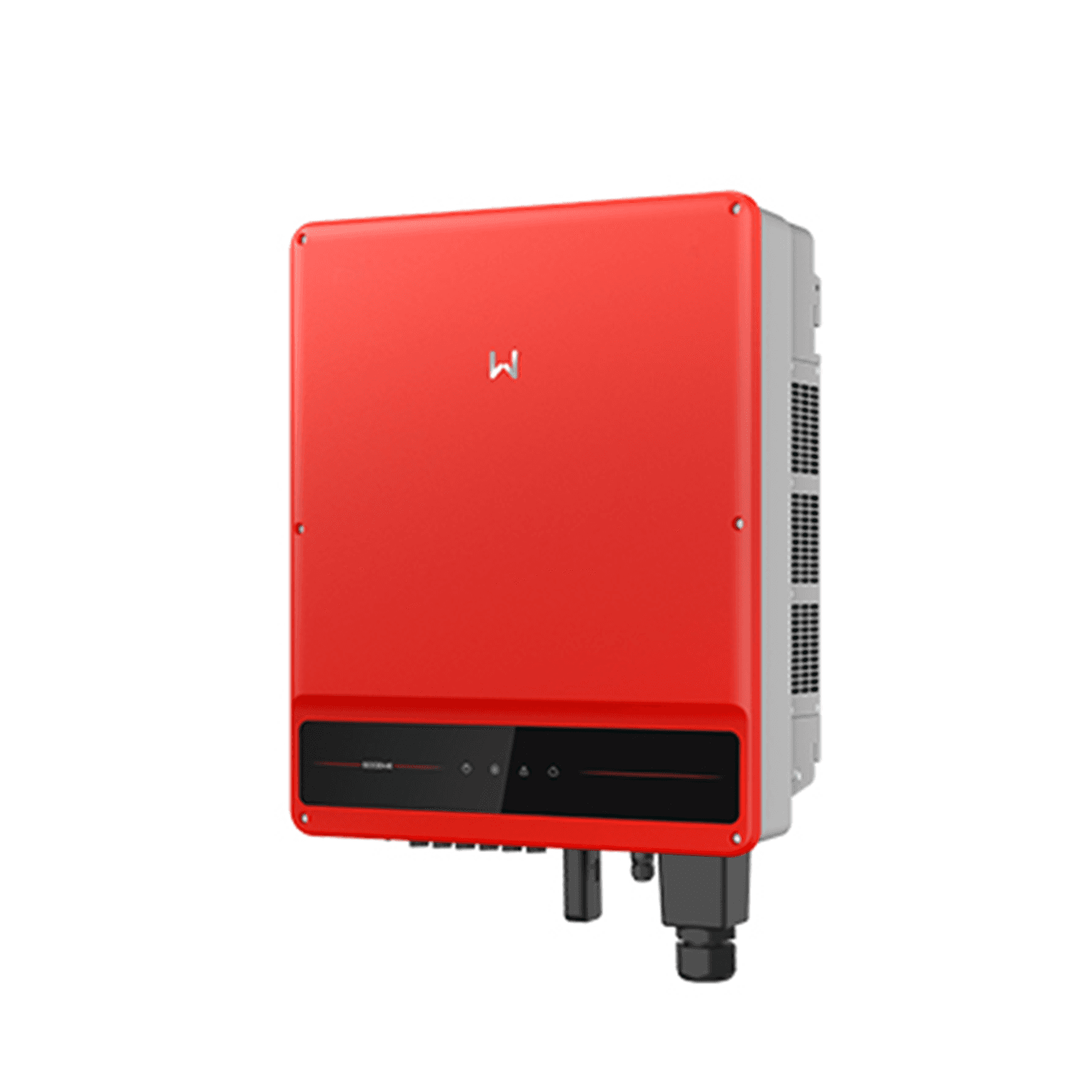

GW50KS-MT
GoodWe
GOODWE SMT 3PH 50KW, SEZ. DC, SPD II, WIFI
Specifications
Maximum DC input power50,000 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range200-950 V
Start-up voltage180 V
Nominal input voltage600 V
Max. input current per MPPT30 A
Max. short-circuit current per MPPT37.5 A
Number of MPPT5
Number of strings per MPPT2
Maximum AC power55 W
Nominal AC output voltage230 / 400, 3L / N / PE o 3L / PE V
AC output voltage range320-460 V
Max. AC output current80 A
Dimensions520 Ă— 660 Ă— 220 mm
Weight55 kg
Protection classIP65
