Photovoltaic inverters

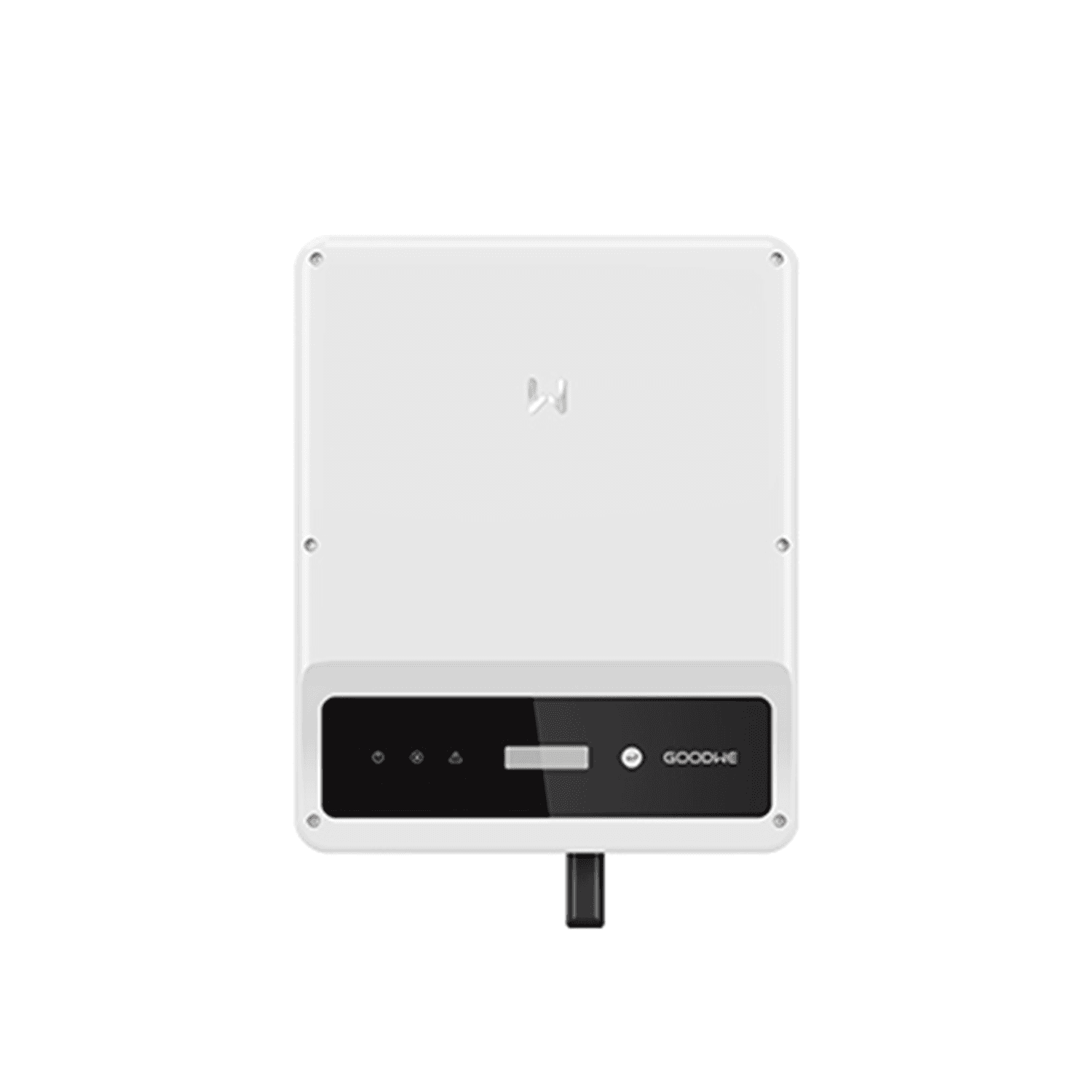

GW5K-DT
GoodWe
GOODWE DT 3PH 5KW
Specifications
Maximum DC input power5,000 kw
Maximum DC input voltage1,000 V
MPPT operating voltage range180-850 V
Start-up voltage160 V
Nominal input voltage620 V
Max. input current per MPPT 12.5/12.5 A
Max. short-circuit current per MPPT15.6/15.6 A
Number of MPPT2
Number of strings per MPPT01-gen
Maximum AC power5500*1 W
Nominal AC output voltage400, 3 L / N / PE V
Max. AC output current8 A
Dimensions354 Ă— 433 Ă— 147 mm
Weight15 kg
Protection classIP65
