Photovoltaic inverters

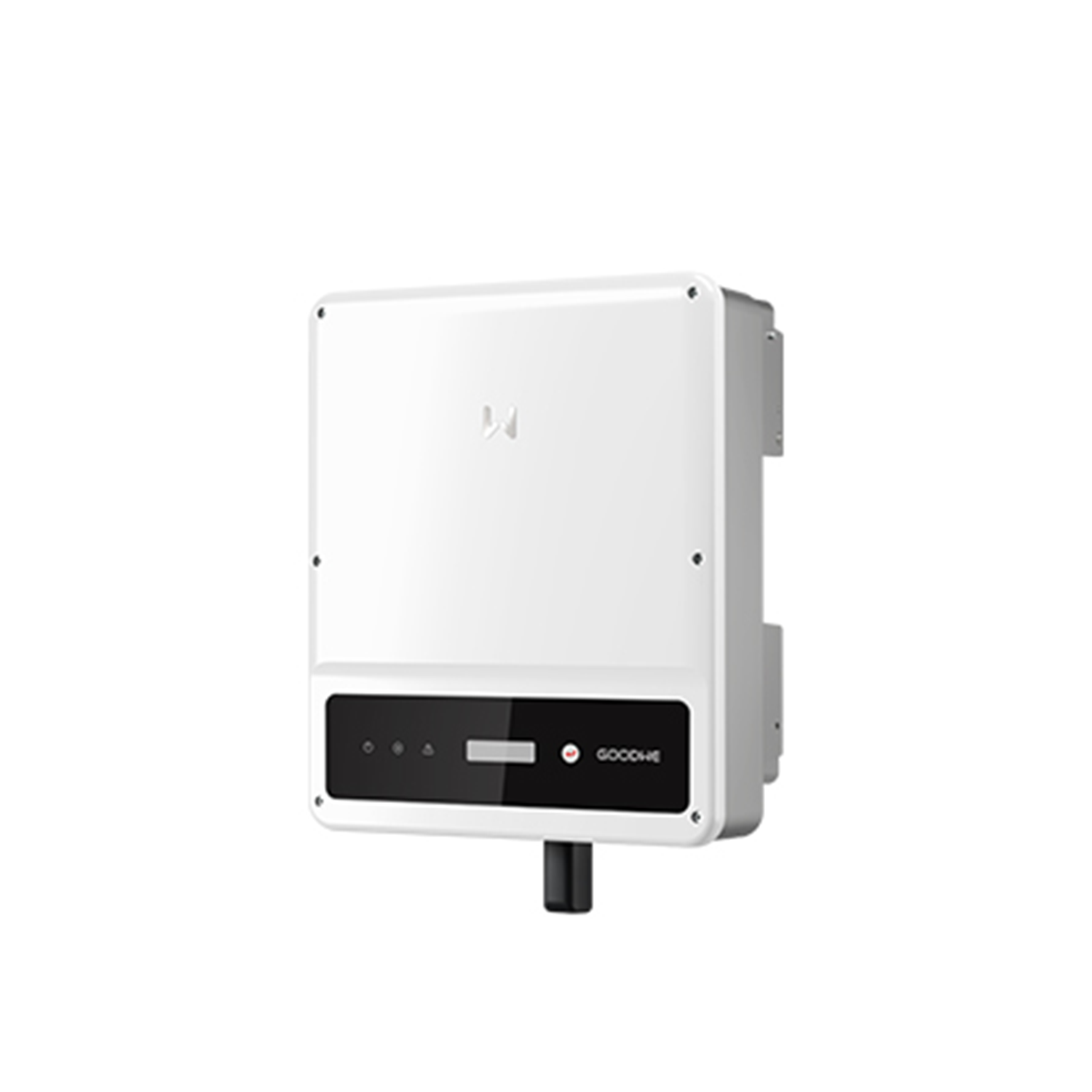

GW6000-SDT-20
GoodWe
GOODWE SDT G2 PLUS 3PH 6000WP, 15A, SEZ. DC, WIFI
Specifications
Maximum DC input power6,000 kw
Maximum DC input voltage1,000 V
MPPT operating voltage range180-850 V
Start-up voltage180 V
Nominal input voltage620 V
Max. input current per MPPT16 A
Max. short-circuit current per MPPT20 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power6,600 W
Nominal AC output voltage400, 3L / N / PE V
AC output voltage range180-270 V
Dimensions354 Ă— 433 Ă— 147 mm
Weight15 kg
Protection classIP65
