Photovoltaic inverters

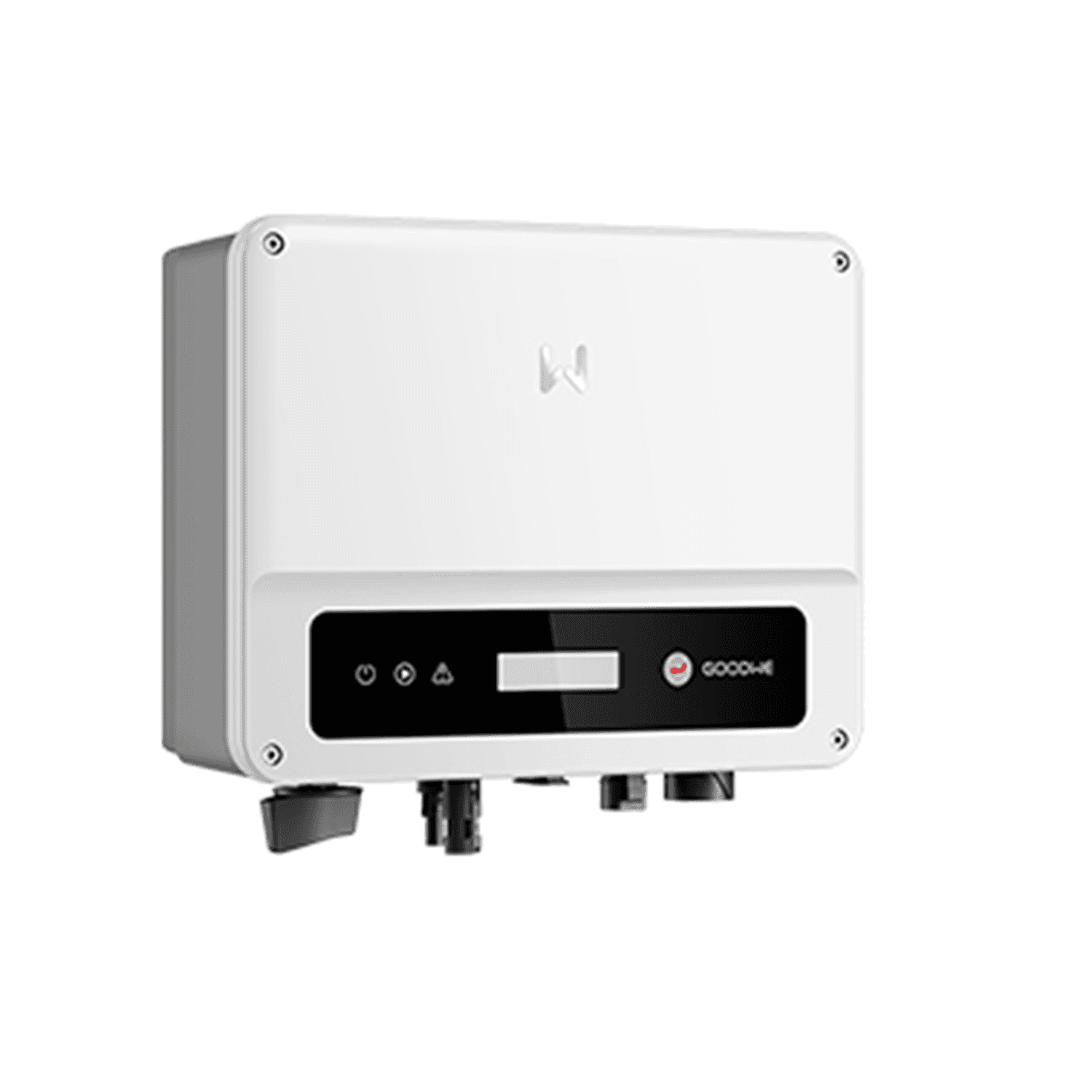

GW700-XS-11
GoodWe
GOODWE XS PLUS 1PH 700WP, 15A, SEZ. DC, WIFI
Specifications
Maximum DC input voltage500 V
MPPT operating voltage range40-450 V
Start-up voltage40 V
Nominal input voltage360 V
Max. input current per MPPT15 A
Max. short-circuit current per MPPT18.75 A
Number of MPPT1
Number of strings per MPPT1
Maximum AC power800*1 W
Nominal AC output voltage230 V
AC output voltage range154-288 V
Max. AC output current3.5 A
Dimensions295 Ă— 230 Ă— 113 mm
Weight5.8 kg
Protection classIP65
