Photovoltaic inverters

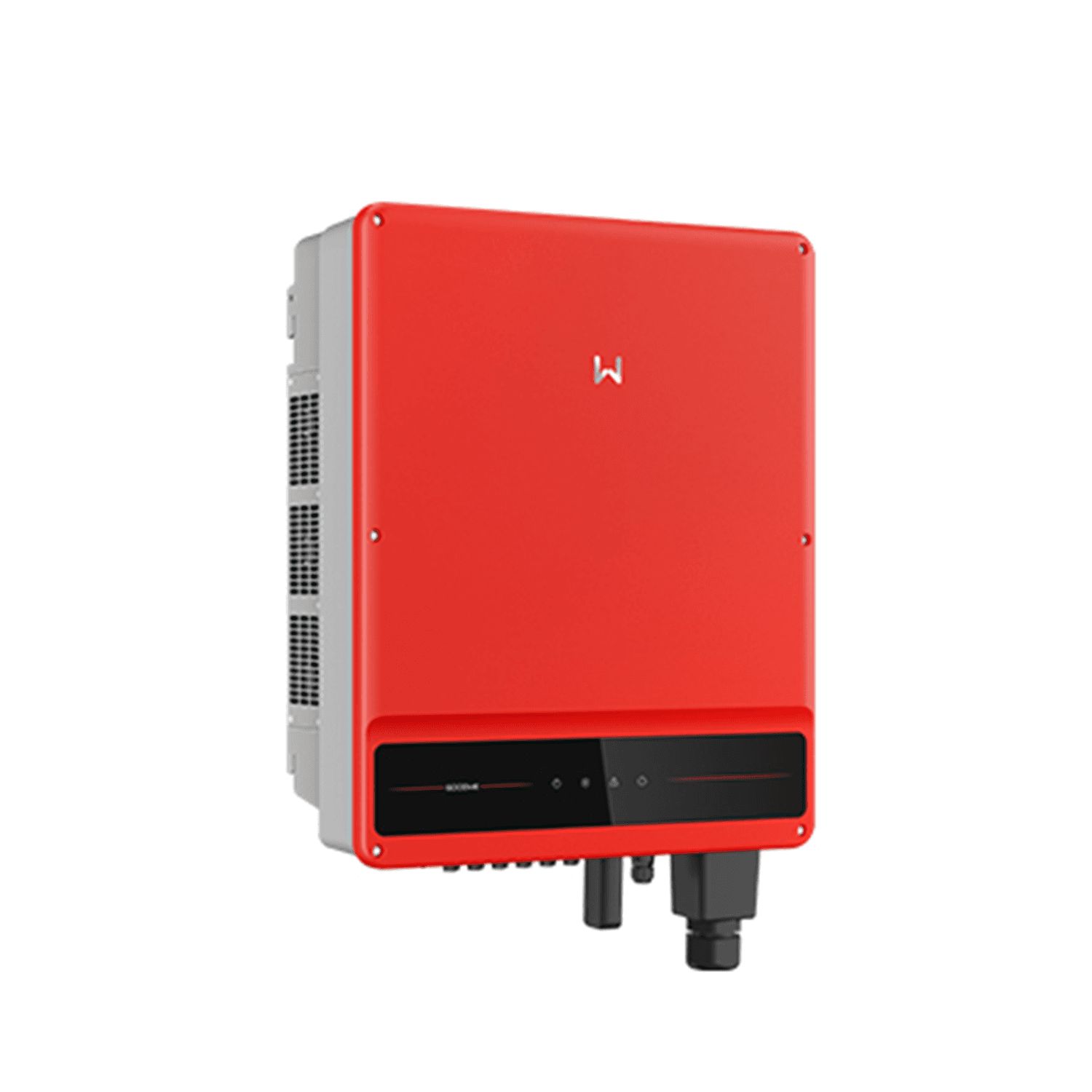

GW80K-SMT
GoodWe
GOODWE SMT 3PH 80KW, SEZ. DC
Specifications
Maximum DC input power80,000 kw
Maximum DC input voltage1,100 V
MPPT operating voltage range18-1000 V
Start-up voltage200 V
Nominal input voltage600 V
Max. input current per MPPT42 A
Max. short-circuit current per MPPT52.5 A
Number of MPPT6
Number of strings per MPPT2
Maximum AC power88 W
Nominal AC output voltage220 / 380, 230 / 400, 3L / N / PE o 3L / PE V
AC output voltage range323-457 V
Max. AC output current128 A
Dimensions700 Ă— 550 Ă— 260 mm
Weight64 kg
Protection classIP66
