Photovoltaic inverters

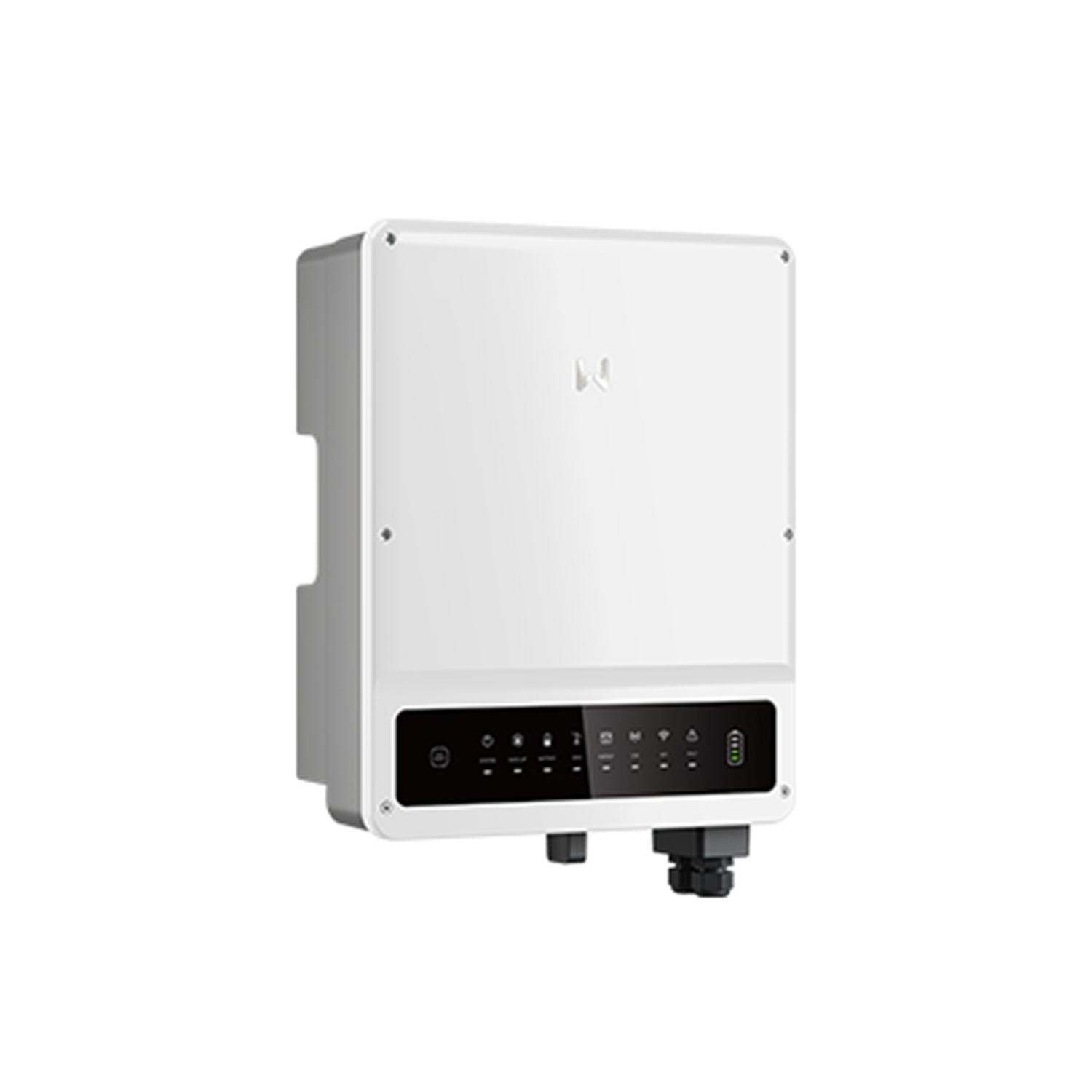

GW8KN-ET-SPD-B
GoodWe
GOODWE ETR PLUS 3PH 8KW, IBRIDO BACK-UP, SPD II
Specifications
Maximum DC input voltage1,000 V
MPPT operating voltage range200-850 V
Start-up voltage180 V
Nominal input voltage620 V
Max. input current per MPPT12.5 A
Max. short-circuit current per MPPT15.2 A
Number of MPPT2
Number of strings per MPPT1
Maximum AC power10,000 W
Nominal AC output voltage400 / 380, 3L / N / PE V
AC output voltage range0-300 V
Max. AC output current8.5 A
Dimensions415 Ă— 516 Ă— 180 mm
Weight24 kg
Protection classIP65
