Photovoltaic modules
ESM430-54HM10-BB
Eurener

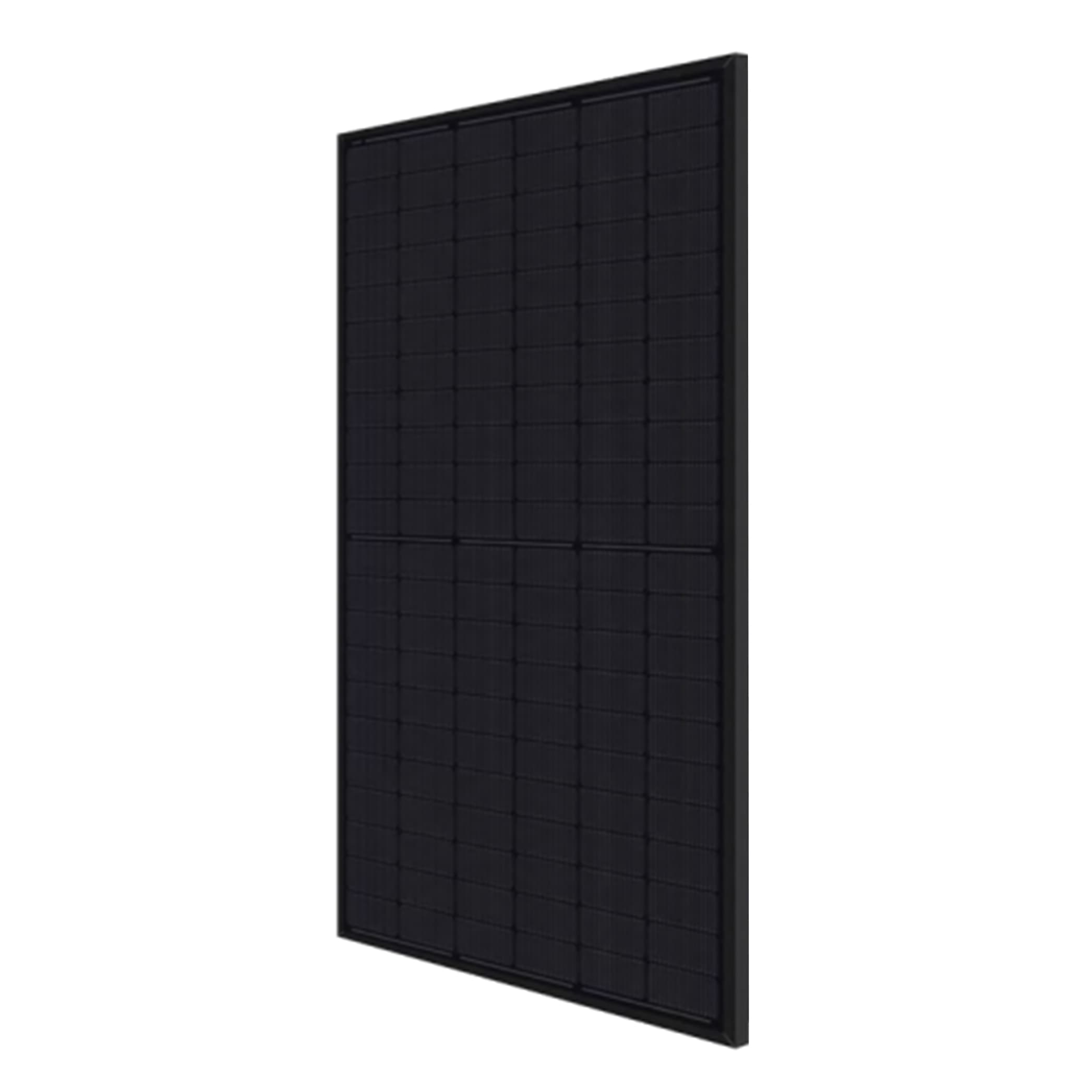

Eurener Nexa DG Bif 430W, 54-cell M10, all-black, bifacial, class A
Specifications
Nominal power - Pmax430 W
TechnologyN-Type TOPCon
TypologyBifacciale
Number of cells108 (54x2)
Front glass2 mm
Back glass2 mm
Dimensions1724x1134x30 mm
Weight24 Kg
Voltage at maximum power (Vmp)31.82 V
Current at maximum power (Imp)13.52 A
Open circuit voltage (Voc)38.42 V
Short-circuit current (Isc)14.26 A
Module efficiency STC22.01 %
Operating temperature-0,470588235 °C
Maximum system voltage1,500 VDC
Power tolerance0/+3 %
Temperature coefficient Pmax-0.29 %/°C
Temperature coefficient Voc-0.28 %/°C
Temperature coefficient Isc0.05 %/°C
Maximum test load (wind/snow)2400/5400 Pa
Hail resistance30 mm
Bifaciality coefficient80±5 %
Nr. of pieces per pallet37 pcs/pallet
Nr. of pieces per container962 pcs/container
Product warranty30 years
Production warranty88.0% - 30 years
Cable length1000 (±20%) mm
Features
Made in the EU (Spain)
ENEA register letter A
Hail resistance class 3 (30mm)
30-year warranty
Cell efficiency 24.04%
